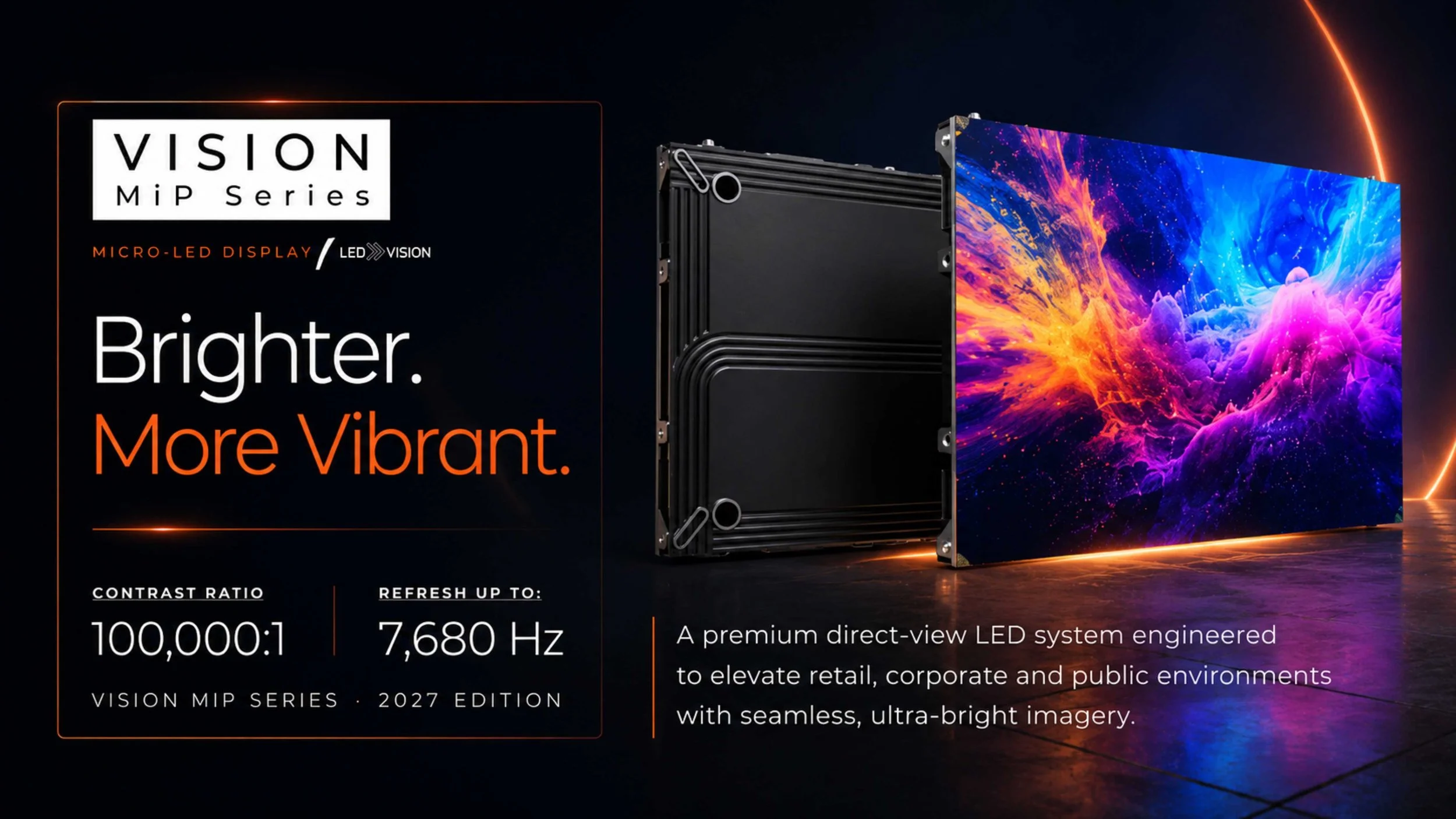

• Fine pixel pitch Micro-LED direct-view video wall with a vibrant display panel and rear module, rated 100,000 to 1 contrast and up to 7,680Hz refresh — Vision MiP Series by LED Vision

  • Micro-LED direct-view display feature overview covering 0.78 to 0.94mm sub-millimetre pixel pitch for a true 4K canvas, 16-bit grayscale with wide DCI-P3 color, and a seamless front-serviceable modular build — Vision MiP Series by LED Vision

  • Micro-LED video wall performance highlights with 100,000 to 1 contrast, 3,840 to 7,680Hz refresh, 1,500 nits peak brightness, and 0.78 to 0.94mm fine pixel pitch — Vision MiP Series by LED Vision

  • Large indoor Micro-LED video wall in a corporate lobby reception delivering seamless ultra-bright visuals for retail and public spaces — Vision MiP Series by LED Vision

  • Micro-LED video wall applications across retail storefronts, corporate offices, museum galleries, and home cinema — Vision MiP Series by LED Vision

  • Slim 80mm Micro-LED video wall with tool-less front-service magnetic modules, 175 degree ultra-wide viewing angle, and pre-calibrated seamless cabinets — Vision MiP Series by LED Vision

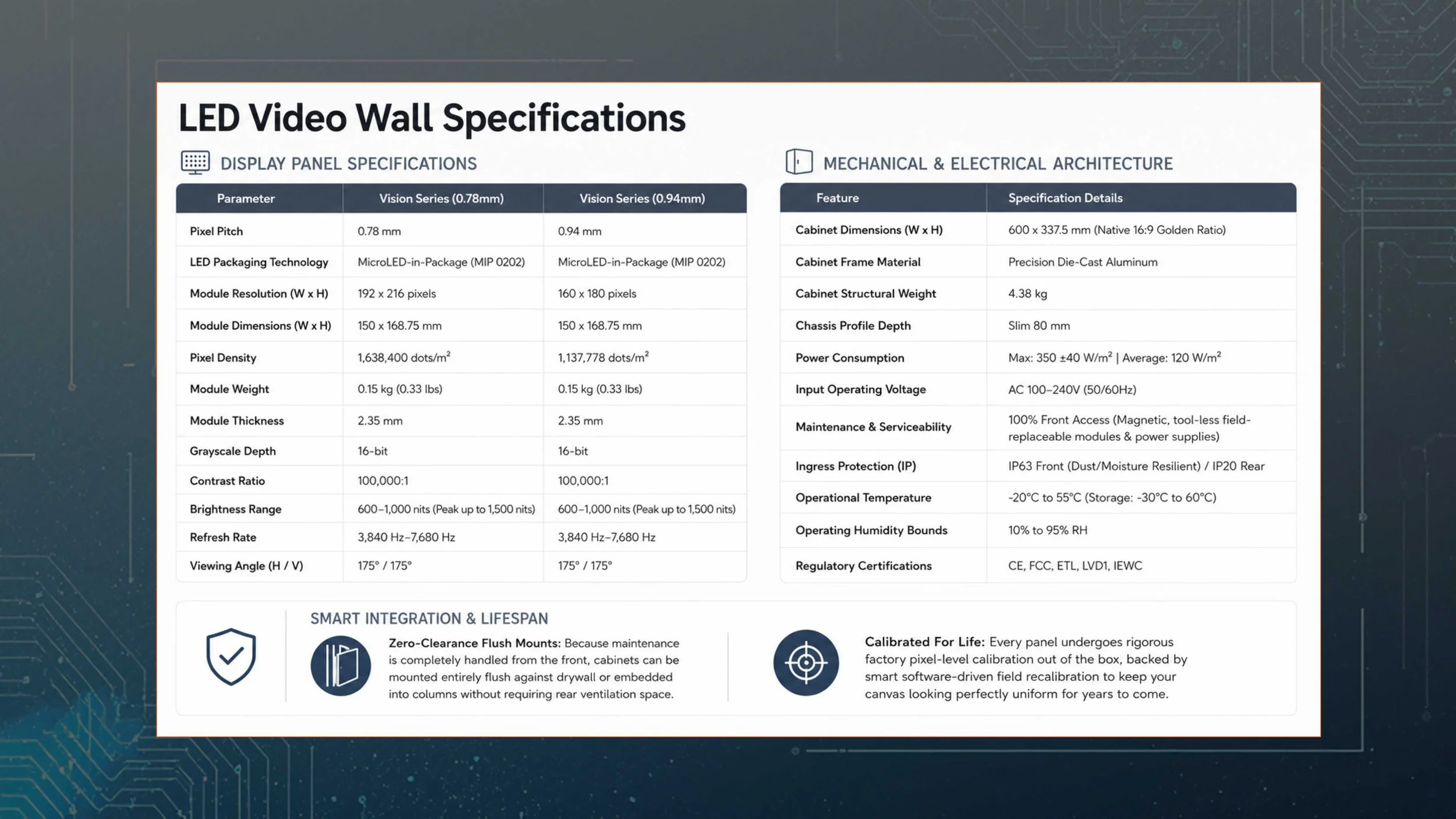

  • Micro-LED video wall specifications by LED Vision comparing the 0.78mm and 0.94mm Vision Series models, with display panel specs plus mechanical and electrical architecture including MicroLED-in-Package, 100,000 to 1 contrast, 175 degree viewing

/ 24-Month Manufacturer Warranty Included

/ 24-Month Manufacturer Warranty Included

DOWNLOAD THE FULL PRODUCT BROCHURE

Premium Indoor Micro-LED Video Walls for Seamless, Camera-Ready Installations

Step into a new class of direct-view display with the Vision MiP Series a premium indoor Micro-LED video wall engineered for high-end fixed environments where the wall has to look flawless up close and faultless on camera. Built on a MicroLED-in-Package (MIP 0202) architecture that outperforms LCD and standard SMD LED, Vision MiP delivers a true 4K canvas at intimate viewing distances, with sub-millimetre 0.78mm and 0.94mm pixel pitch, 16-bit grayscale, a wide DCI-P3 gamut, and a remarkable 100,000:1 contrast for inky blacks and pure whites. Whether you're designing a flagship retail moment, a corporate lobby that sets the tone, a museum installation that immerses, or a private home cinema, it scales seamlessly across massive canvases while a slim 80mm profile, magnetic tool-less front service, and pre-calibrated cabinets keep installs clean and downtime low. Refresh up to 7,680Hz makes it broadcast- and camera-ready, and factory pixel-level calibration keeps color locked in for the life of the install.

Brighter, More Vibrant Visual display

With 16-bit grayscale, an expansive DCI‑P3 color gamut, and a 100,000:1 contrast ratio, Vision MiP renders inky blacks, pristine whites, and richly saturated midtones with exceptional fidelity. Peak brightness reaching up to 1,500 nits ensures content remains punchy and daylight‑readable in bright atriums and storefronts, maintaining accurate color without noticeable shift or washout.

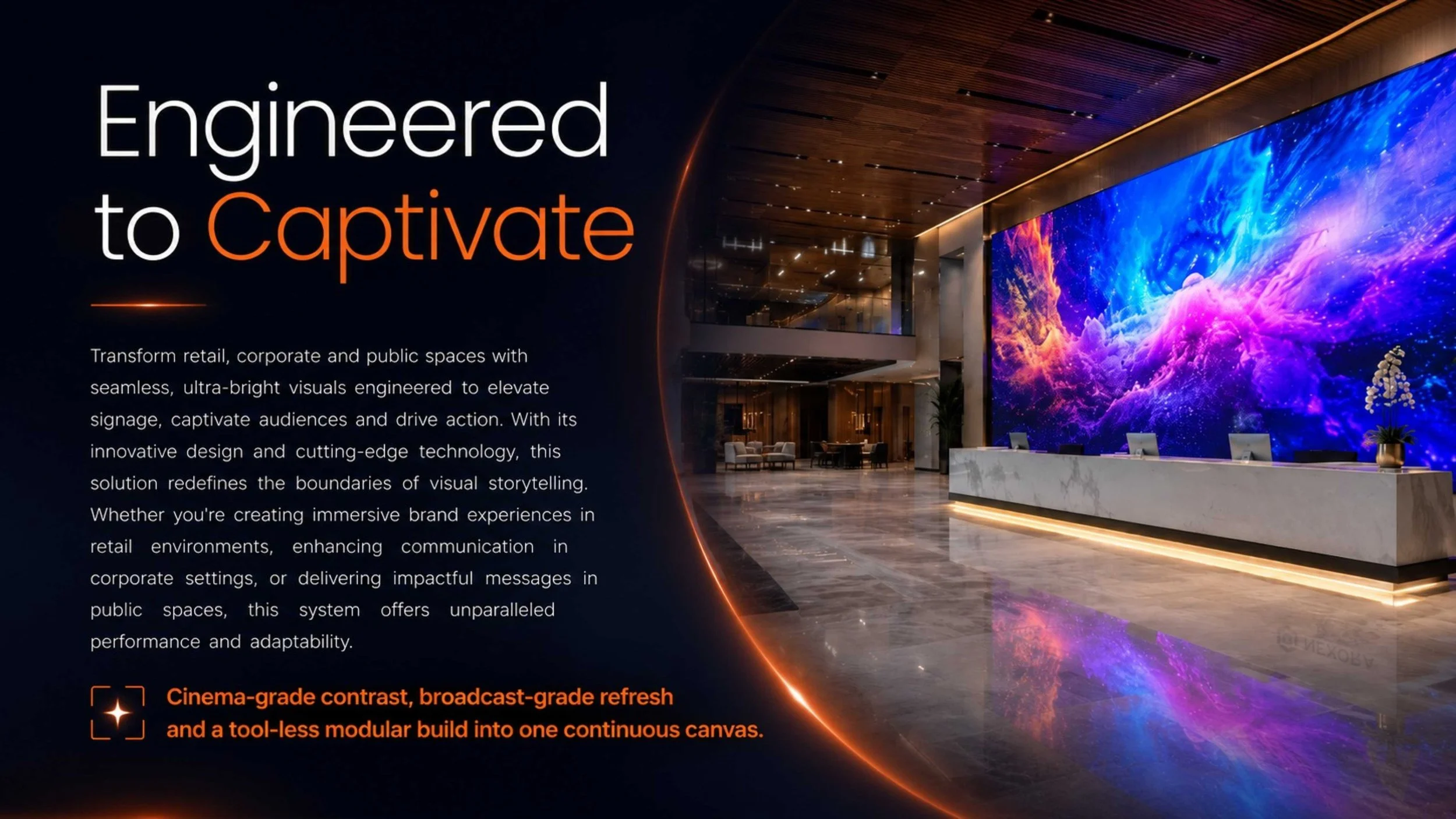

Engineered to Captivate Customers

Cinema-grade contrast, broadcast-grade refresh, and a tool-less modular build come together in one continuous canvas. A 3,840–7,680Hz refresh delivers flicker-free, camera-ready motion for broadcast, virtual production, and live event capture — so what looks stunning in the room looks just as clean on screen.

Seamless, Edge-to-Edge Surfaces

Pre-calibrated 600 × 337.5mm cabinets — built to a native 16:9 golden ratio — align without visible seams across any wall length, in any size or aspect ratio. Support for clean 90° corners and curved layouts means Vision MiP wraps columns and walls as one uninterrupted surface.

The Micro-LED Difference matters

A new class of direct-view emissive display, built on a chip-level MicroLED-in-Package architecture (MIP 0202) that outperforms LCD and standard SMD LED across every dimension that matters — clarity, color depth, contrast, and longevity. The result is pixel-perfect detail at close range and a picture that holds up beautifully both in person and through a lens.

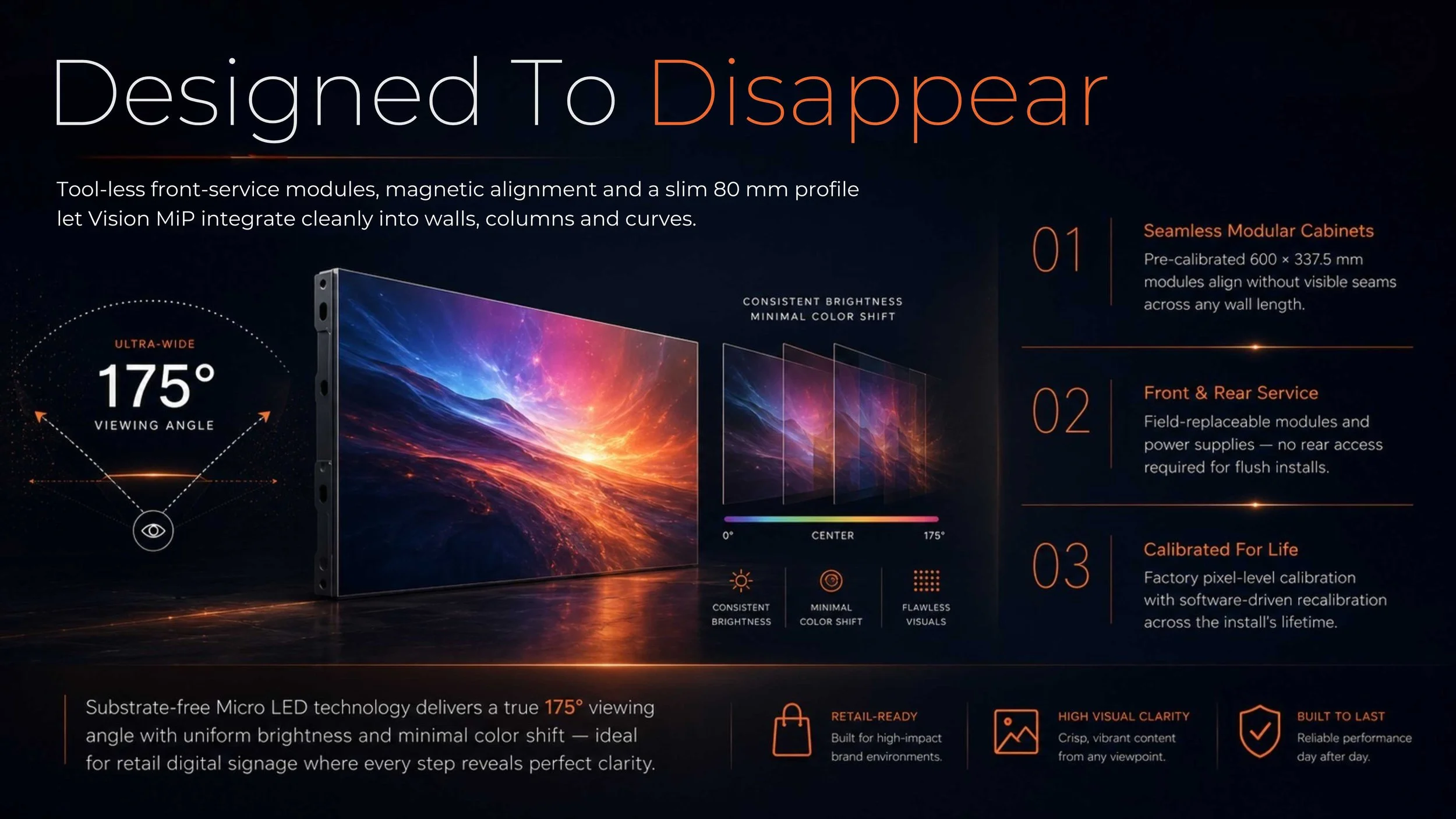

Designed to Disappear seamlessly

Slim 80mm chassis, magnetic alignment, and tool-less front-service modules allow Vision MiP to fit flush into walls, columns, and curves with zero-clearance mounting—no rear access needed. A 175° viewing angle ensures uniform brightness and color from every seat.

Built to Stay Calibrated for Life

Every panel ships with rigorous, factory-level pixel calibration and is supported by intelligent, software-driven field recalibration, so even across expansive canvases the image remains consistently uniform, color-balanced, and undeniably high-end for years to come.

  • OTHER FEATURES

    Brightness & Image Quality

    • 600–1,000 nits, with peak brightness up to 1,500 nits

    • 100,000:1 contrast with 16-bit grayscale and wide DCI-P3 color

    • Deep blacks, pure whites, saturated mid-tones

    • Smooth, flicker-free motion at up to 7,680Hz — camera- and broadcast-ready

    Color & Processing

    • MicroLED-in-Package (MIP 0202) chip-level pixel architecture

    • True 4K canvas at intimate viewing distances

    • 175° horizontal / 175° vertical viewing angle for consistent off-axis color

    Reliability

    • Premium indoor build with precision die-cast aluminum cabinets

    • Factory pixel-level calibration with ongoing software recalibration

    • Operating range -20°C to 55°C (storage -30°C to 60°C), 10%–95% RH

    • IP63 front (dust/moisture resilient) / IP20 rear

    Installation & Maintenance

    • 100% front access — magnetic, tool-less field-replaceable modules and power supplies

    • Zero-clearance flush mounting; no rear access required

    • Pre-calibrated cabinets for fast, seamless alignment

    • Seamless 90° corners and curved configurations; custom sizes and aspect ratios

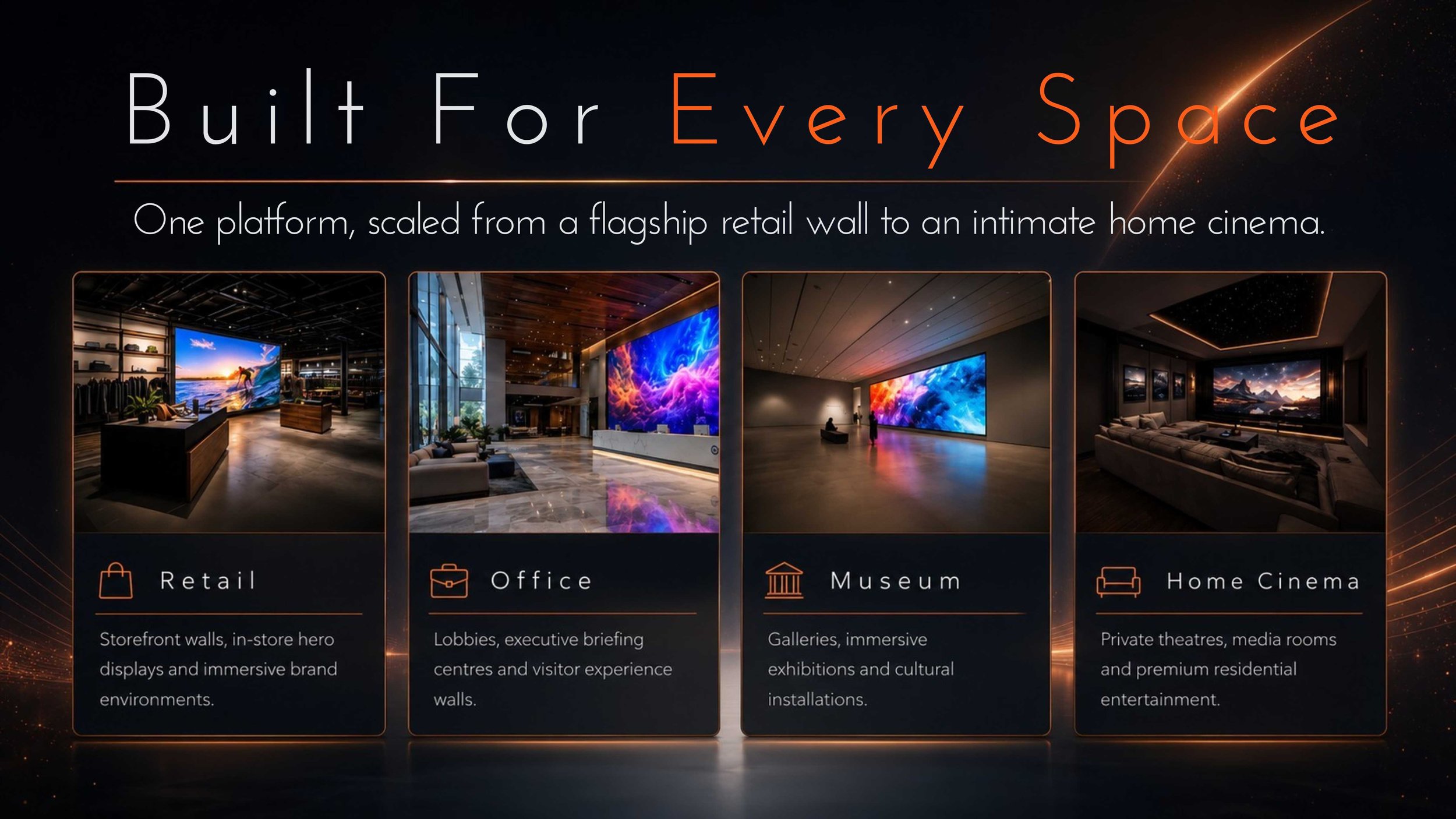

  • Flagship Retail Displays + Brand Experience Walls

    • Bring campaigns, products, and brand storytelling to life with a high-resolution indoor Micro-LED video wall built for flagship stores, storefront hero walls, and immersive brand activations. Vision MiP delivers close-viewing clarity, premium contrast, and seamless scale for retail environments where every detail sells.

    Corporate Lobbies + Reception Video Walls

    • Make a premium first impression with a seamless indoor Micro-LED wall designed for flagship lobbies, executive reception areas, and visitor-experience spaces. Ultra-fine pitch, consistent color, and a clean front-service design turn everyday walls into branded visual statements.

    Museum + Cultural Installations

    Power galleries, immersive exhibitions, and cultural installations with deep blacks, wide viewing angles, and true-to-life color that holds from every vantage point. Vision MiP's seamless, gap-free surface lets curators build large-format storytelling canvases without visual interruption.

    Home Cinema + Premium Residential

    • Replace the projector with a self-emissive Micro-LED canvas for private theaters, media rooms, and premium residential entertainment — with cinema-grade 100,000:1 contrast, HDR-class black levels, and a slim, wall-integrated profile.

    Broadcast + Virtual Production Environments

    • With a 3,840–7,680Hz refresh, deep blacks, and consistent flatness, Vision MiP is camera-ready for corporate studios, presentation stages, virtual production, and live event capture where on-screen results matter as much as in-room impact.

    Experiential + Architectural LED Installations

    • Design immersive indoor environments with creative layouts, including clean corner builds using 90° splicing. Vision MiP suits architectural displays, branded environments, and premium commercial spaces that need seamless visuals, flexible layouts, and high-impact digital storytelling.

  • Pixel Pitch Options:

    • 0.78

    • 0.94
