Fine Pixel Pitch, Built to Live Outdoors

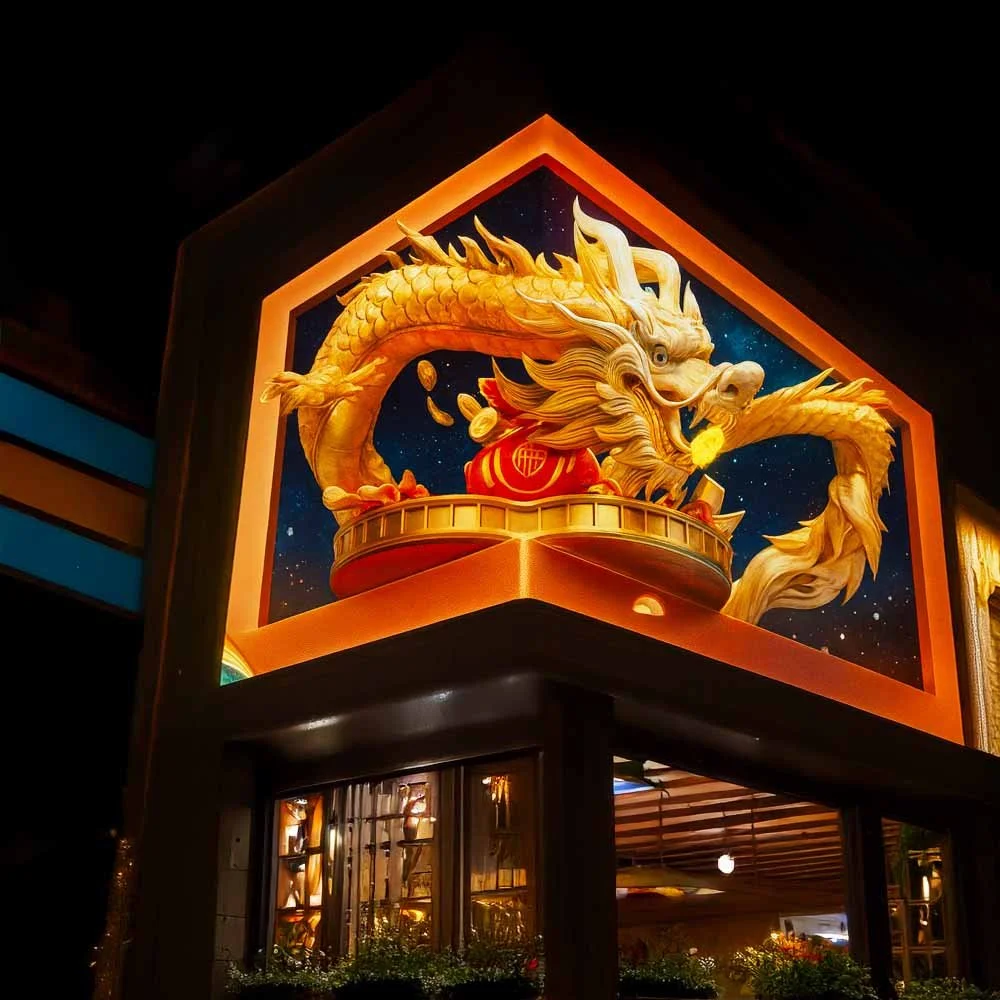

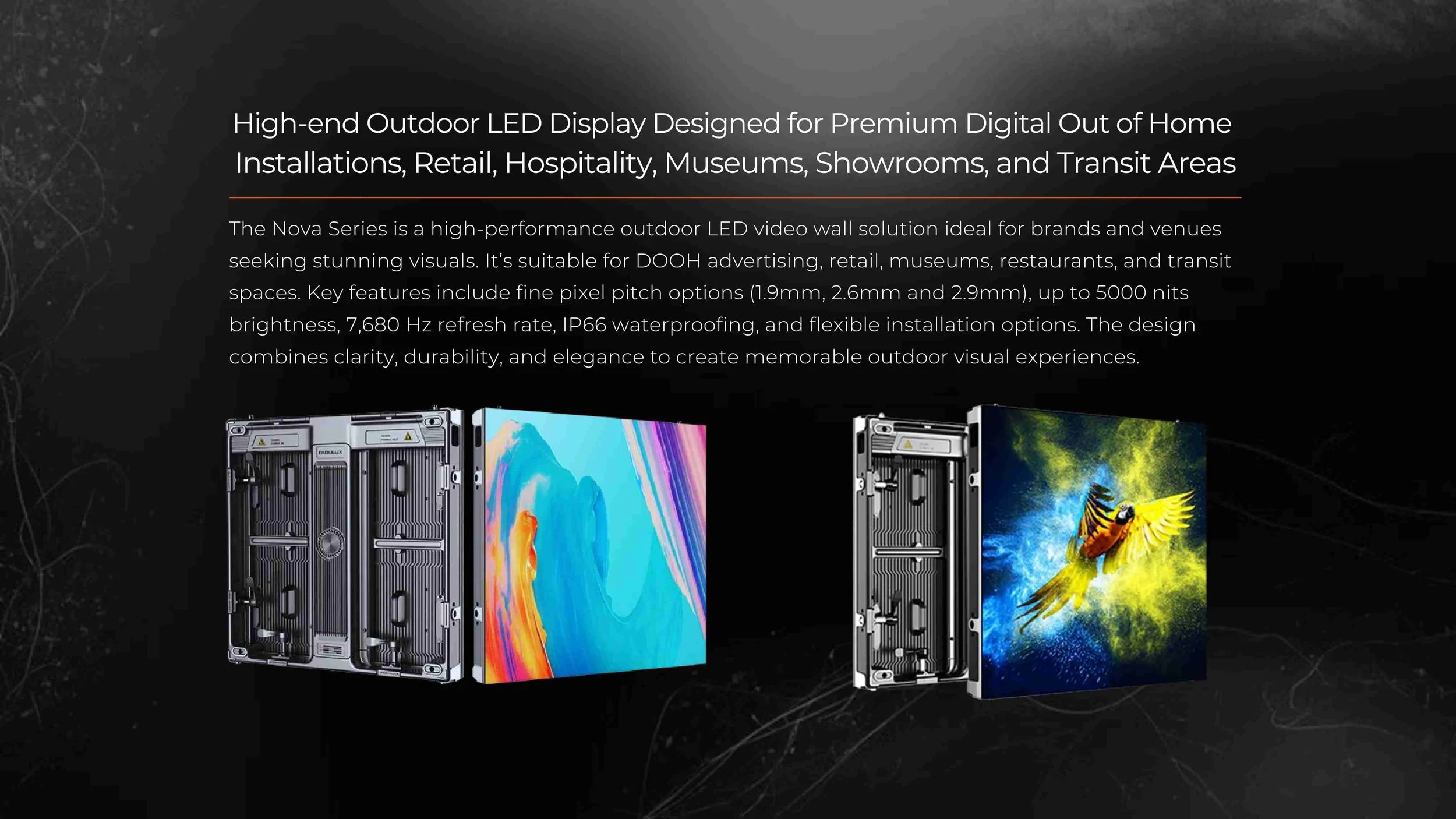

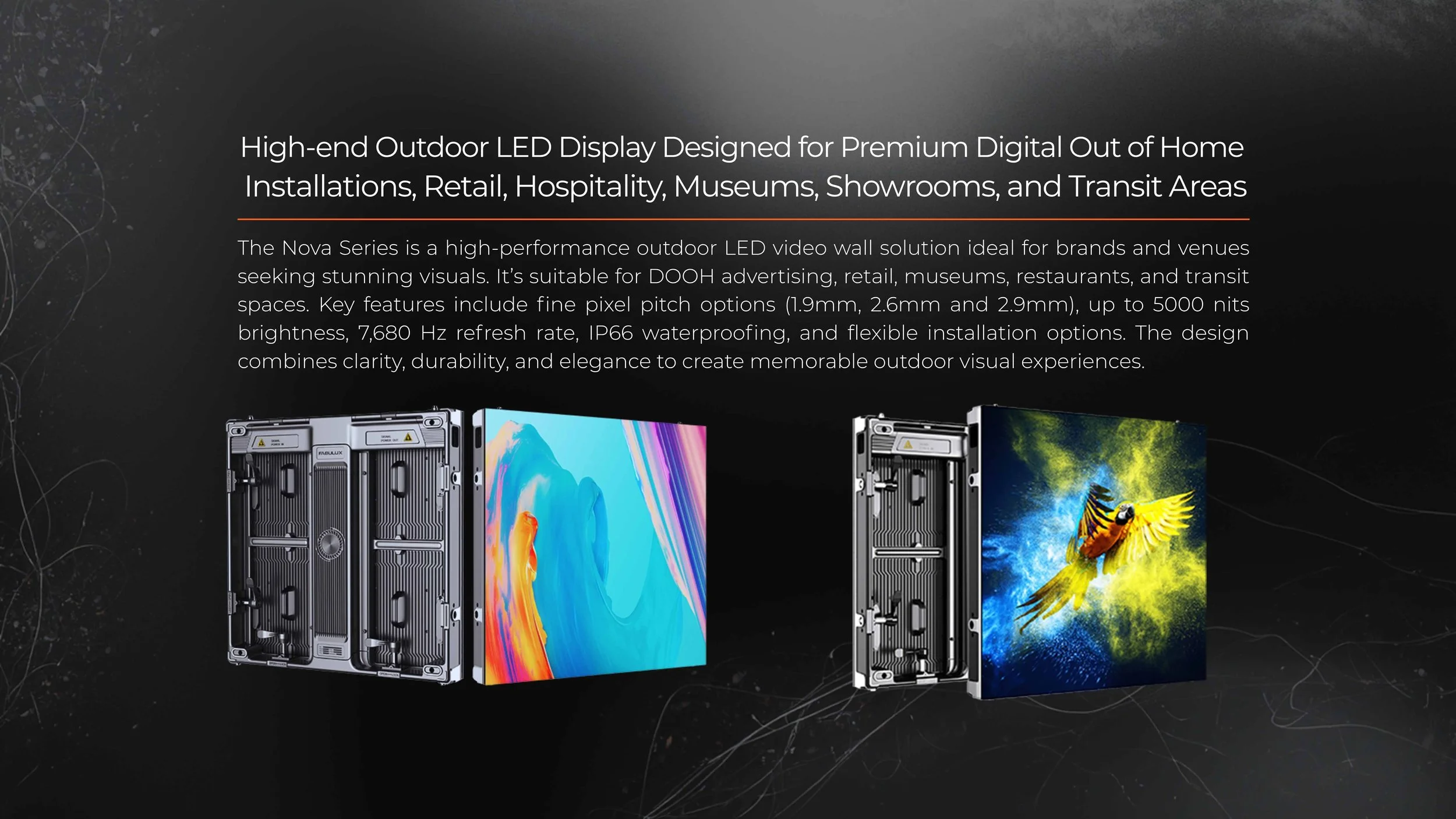

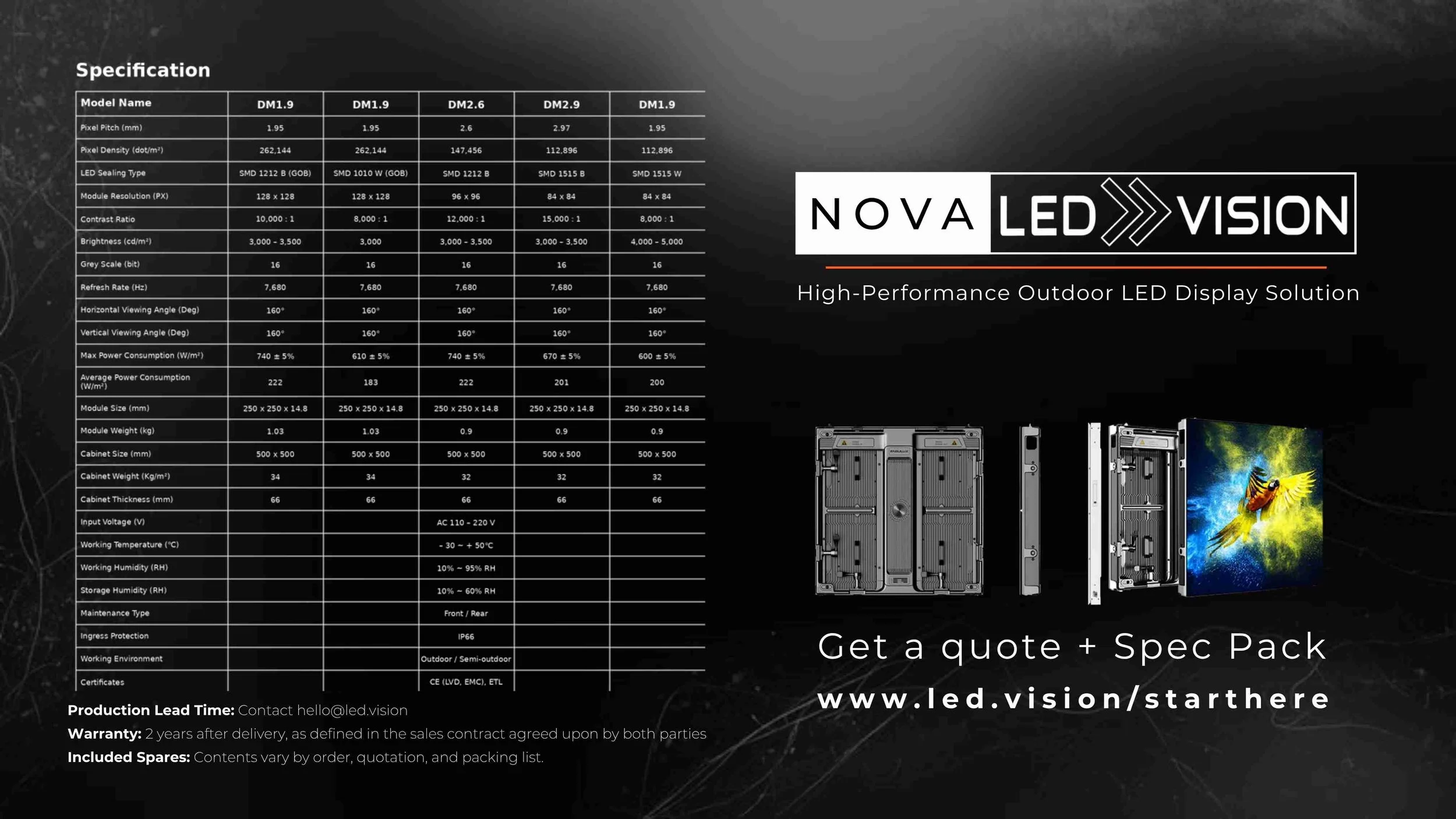

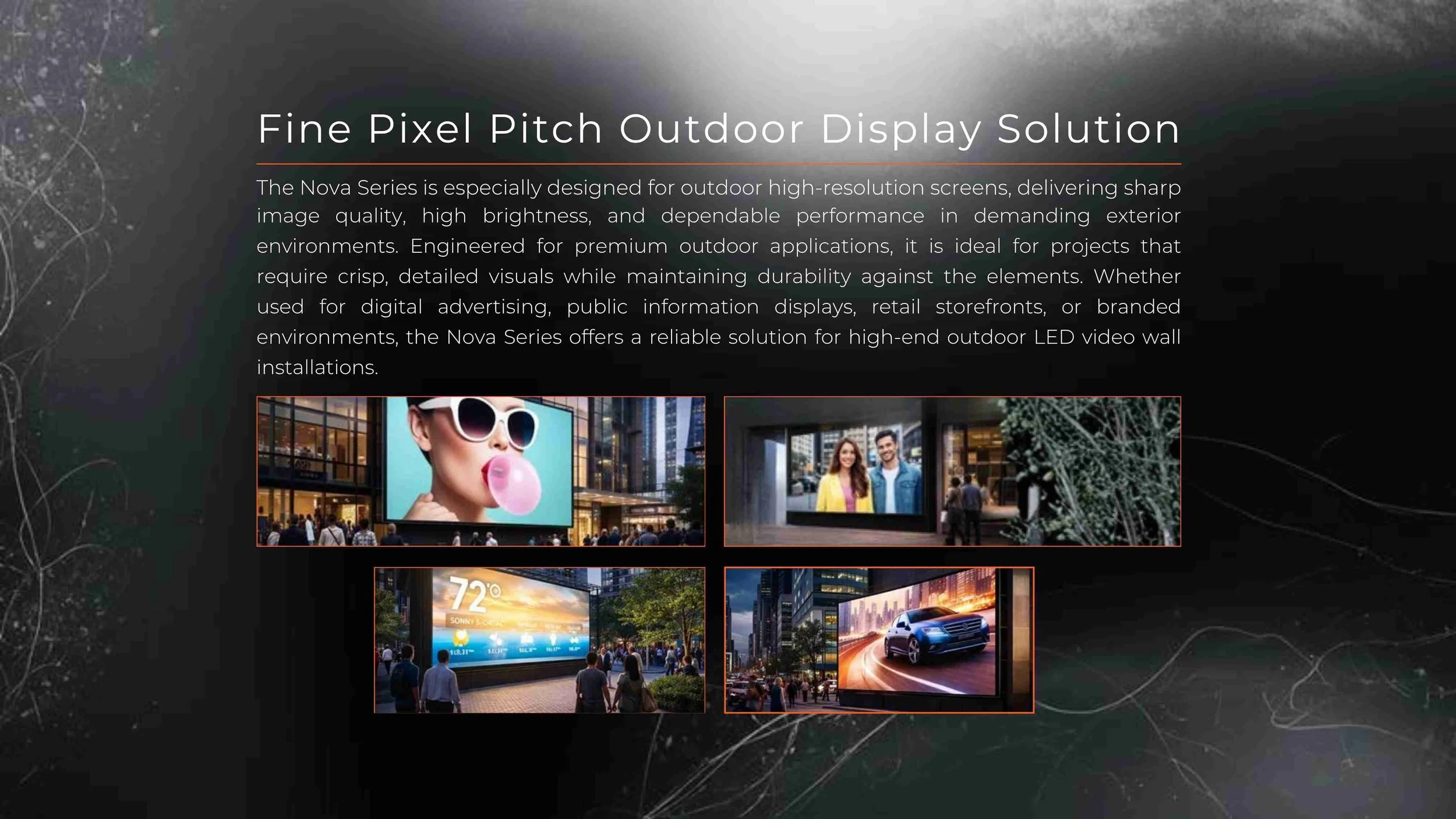

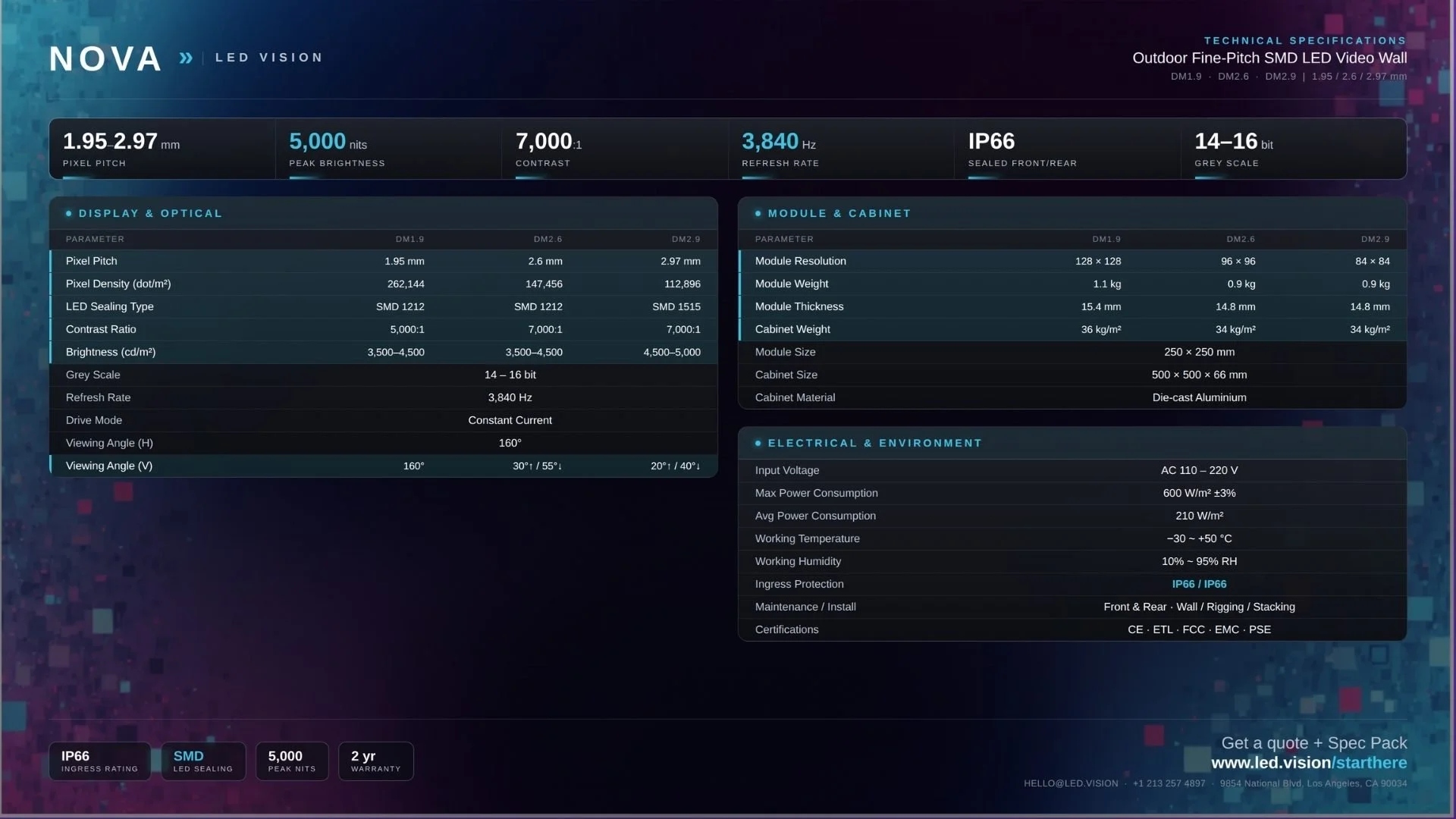

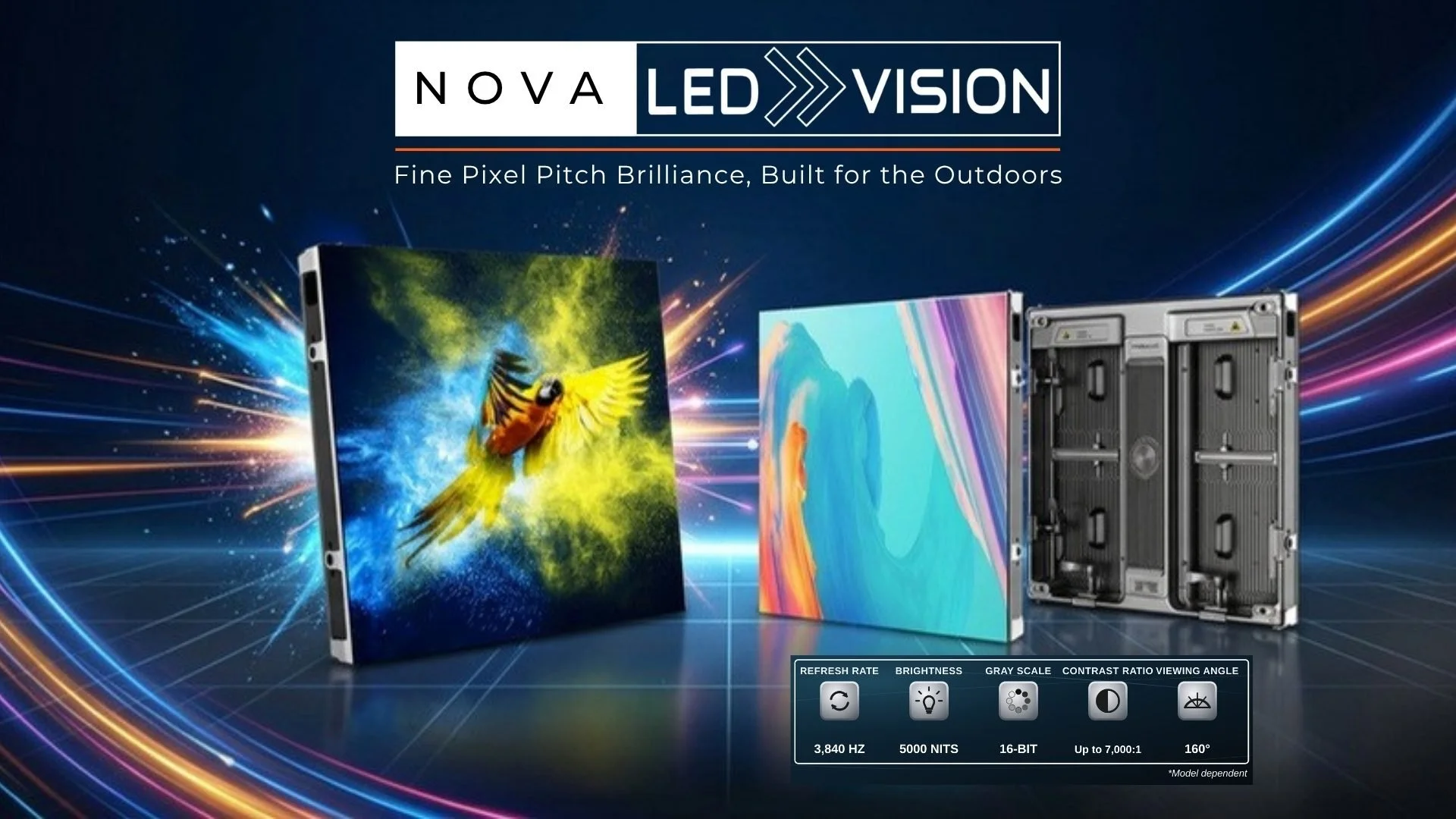

Nova Series is LED Vision's outdoor fine pixel pitch LED video wall, built for permanent installation in places where people view the screen from close range — storefronts, plazas, transit stops, restaurant frontage and museum entrances. It comes in three pixel pitches — 1.95mm, 2.60mm and 2.97mm — on a shared die-cast aluminium 500 × 500mm cabinet sealed to IP66 front and rear, with brightness up to 5,000 cd/m² and a 3,840Hz refresh rate.

Start from how close the nearest viewer stands. As a rule of thumb the pitch in millimetres is roughly the closest comfortable viewing distance in metres, so Nova 1.9 at 1.95mm suits shopfront windows and covered walkways at about two metres, Nova 2.6 suits plazas and platform signage, and Nova 2.9 at 2.97mm suits open positions read from three metres or more. Nova 2.9 is also the brightest of the three at 4,500–5,000 cd/m² and the lowest cost per square metre, so it is the usual choice for unshaded sites.

Brightness runs from 3,500 to 5,000 cd/m² depending on model — Nova 1.9 and Nova 2.6 are specified at 3,500–4,500 cd/m², and Nova 2.9 at 4,500–5,000 cd/m². That is the range intended for daylight legibility rather than merely being visible. For a screen in unshaded direct midday sun, tell us the orientation when you request a quote and we will confirm what it will do in that specific position.

Yes — that is what the specification is for. Ingress protection is IP66 on both the front and the rear of the cabinet, meaning dust-tight and protected against powerful water jets from either side, and the construction carries a 5VB fire-resistant rating. The working range is −30°C to +50°C at 10%–95% relative humidity, and the working environment is specified as outdoor.

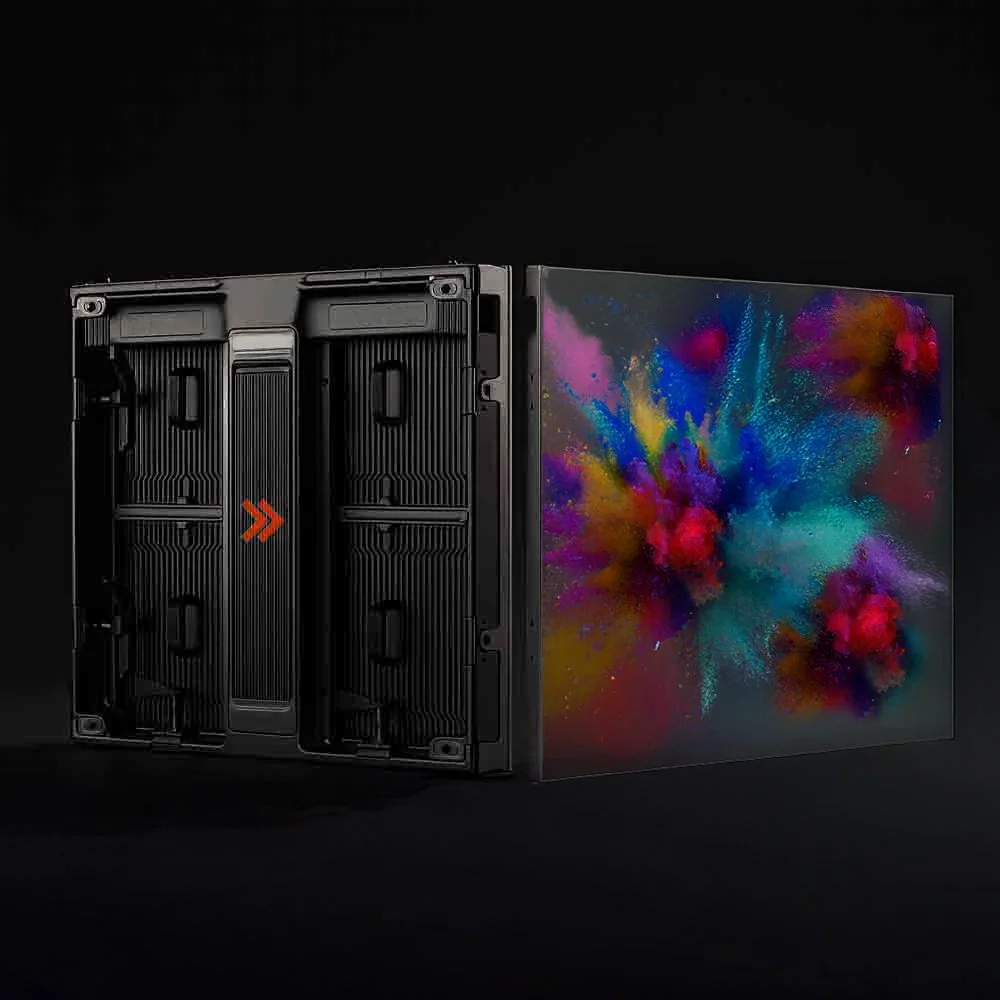

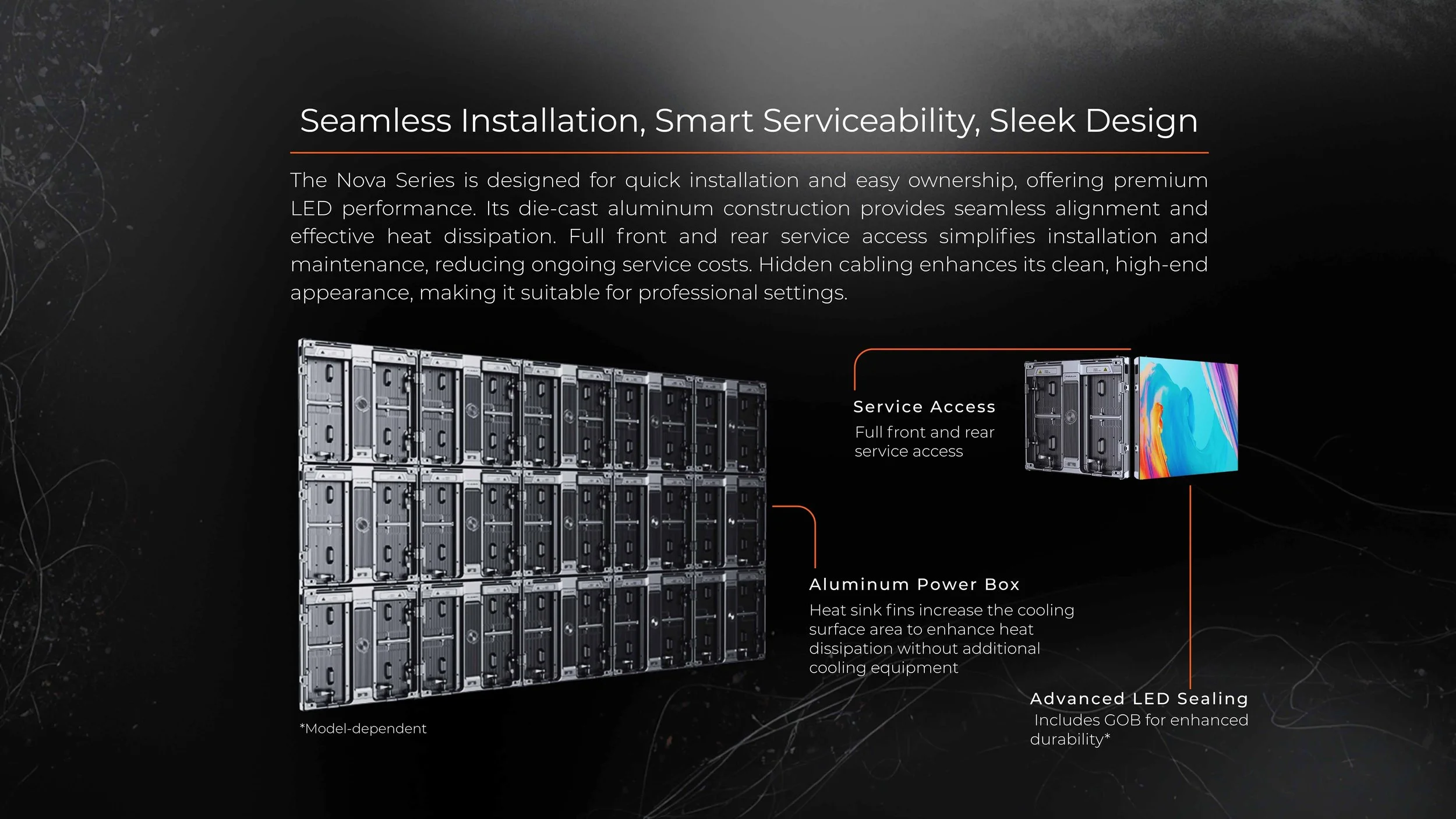

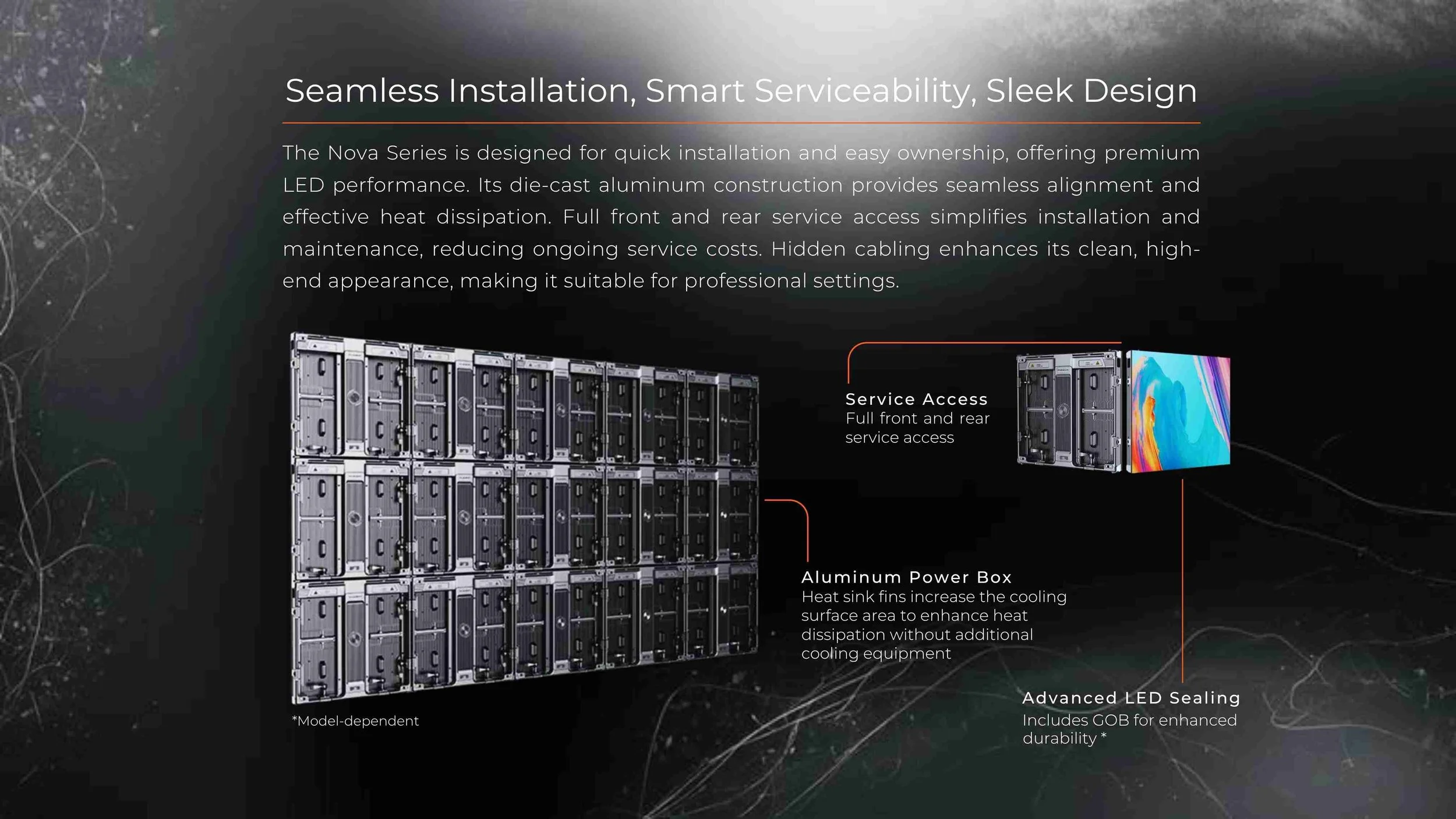

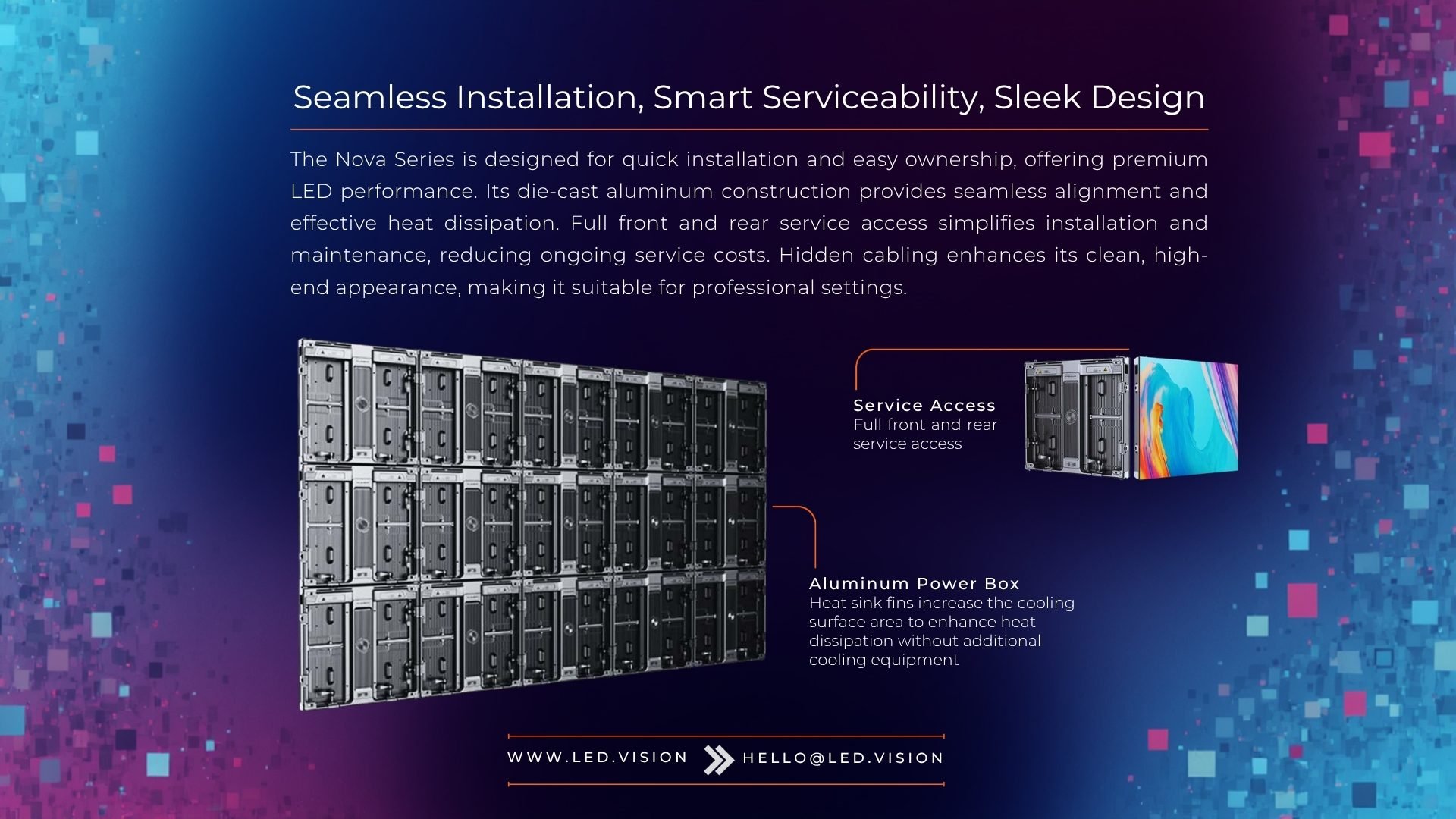

Maintenance is front and rear: modules can be removed from the face of the cabinet or from the back, whichever the installation allows. That matters because a screen fixed flat against a building has no rear access at all, while a ground-stacked or rigged screen is usually far easier to reach from behind. Modules are 250 × 250mm and weigh 0.9–1.1kg, so replacement is at module level rather than cabinet level.

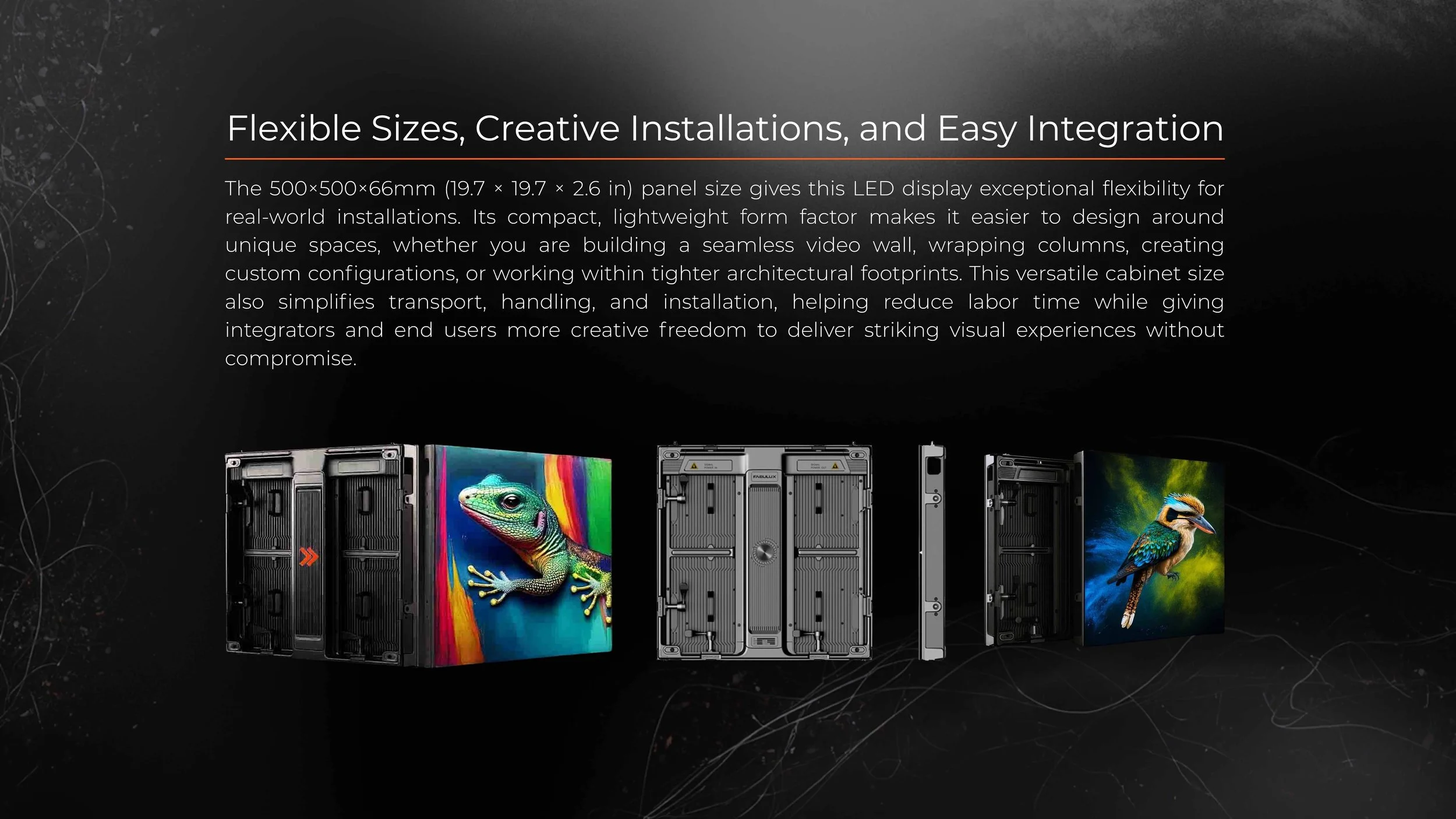

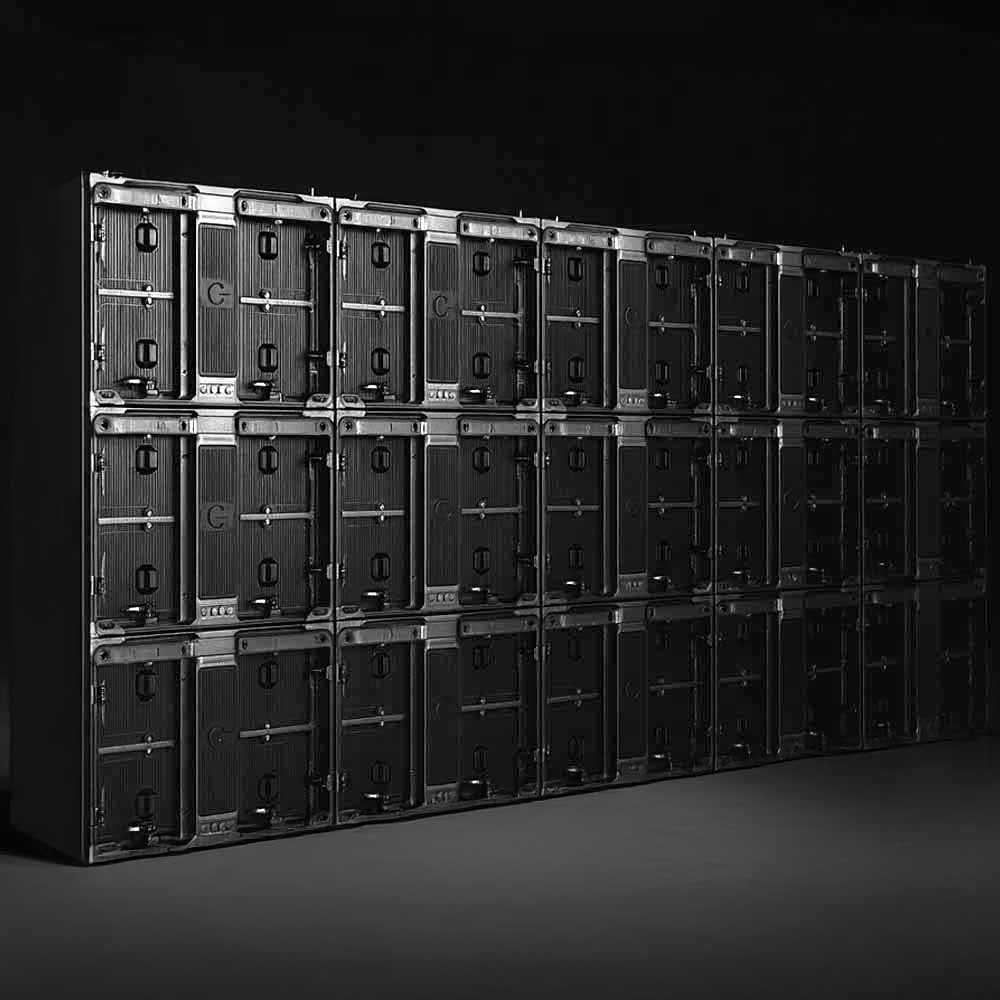

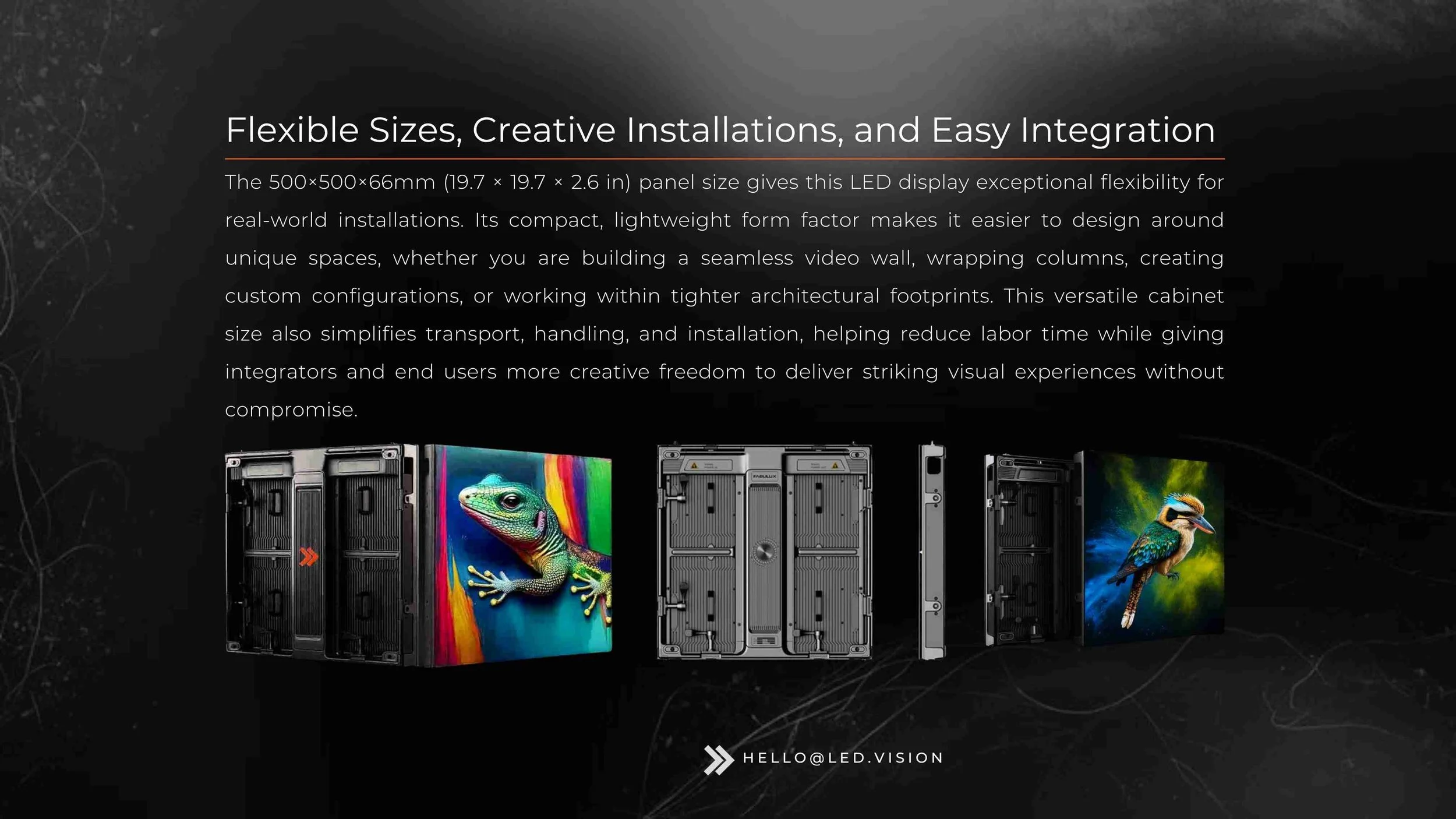

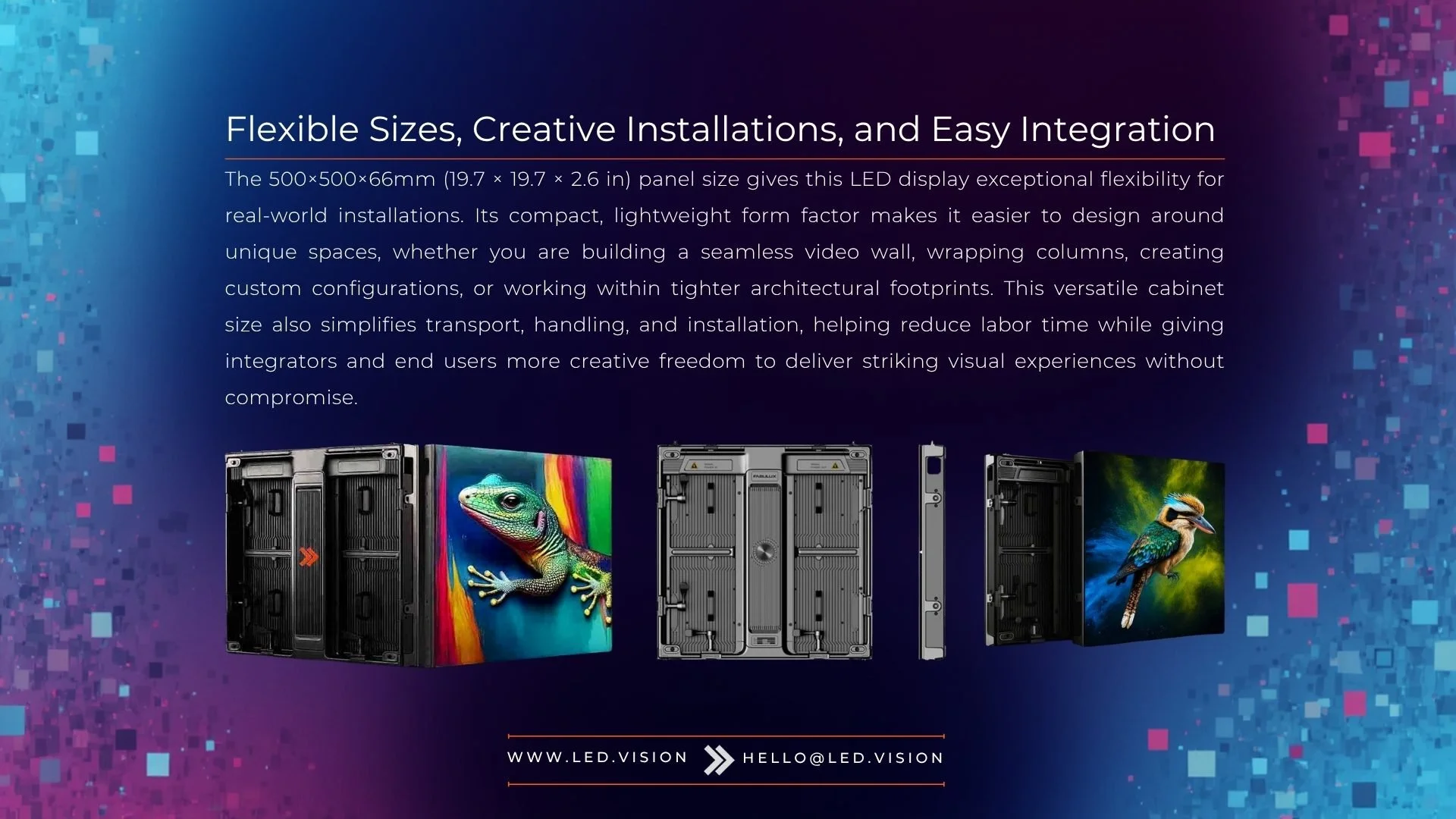

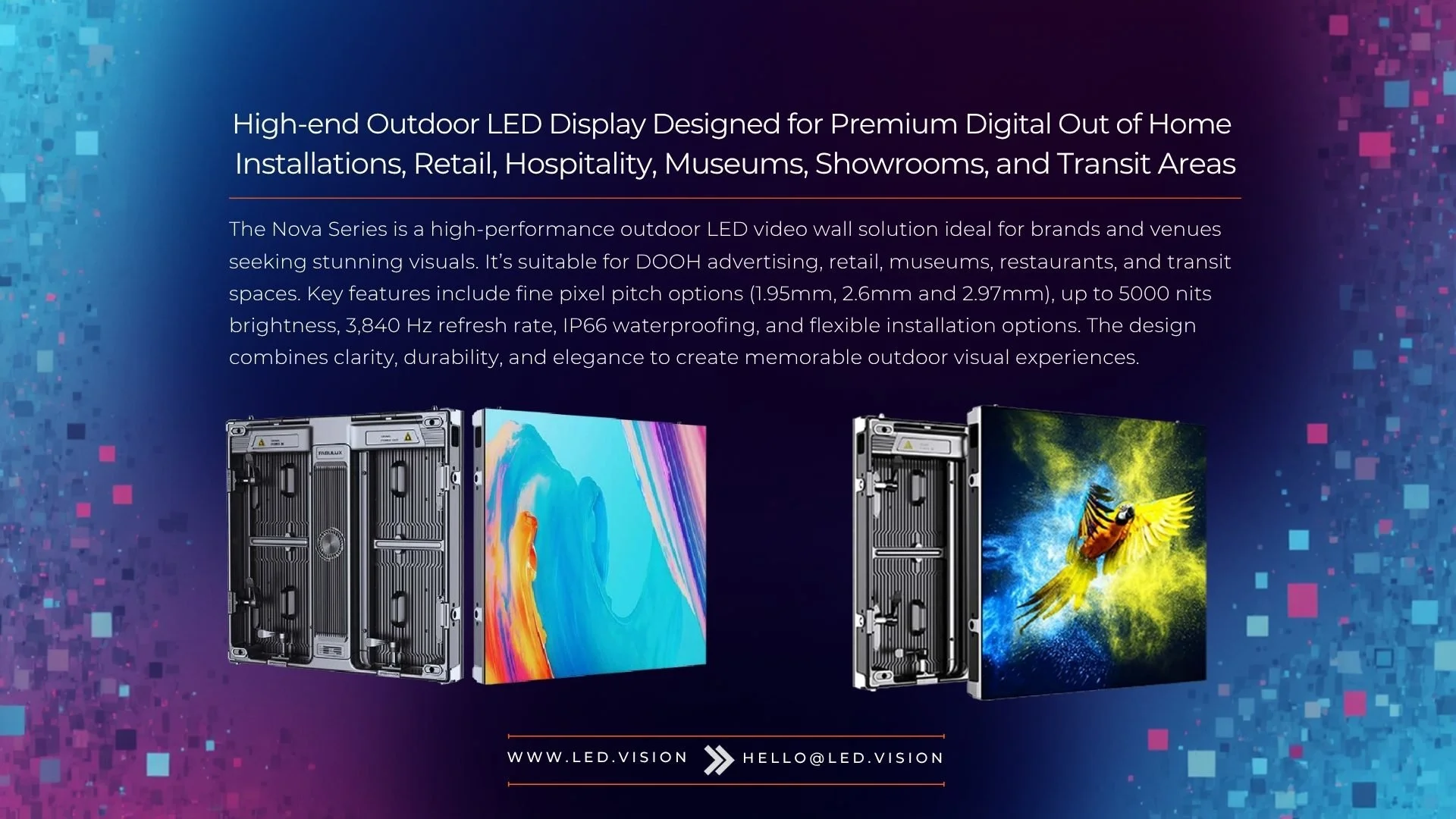

Four methods are supported from the same cabinet: wall mounting, suspended rigging, ground stacking and hanging. Cabinets are 500 × 500mm, 66mm deep, and weigh 34–36 kg/m² depending on model. Because every cabinet is an exact 500mm square, screen dimensions work out in clean multiples with no part panels at the edges.

Average consumption is 210 W/m², with a maximum of 600 W/m² ±3%, on an AC 110–220V input. Average draw is the number that matters for running cost, since maximum is only reached on full-white content at full brightness. For a 3 × 2m wall — 24 cabinets, 6m² — that is roughly 1.3kW on average while the screen is running.

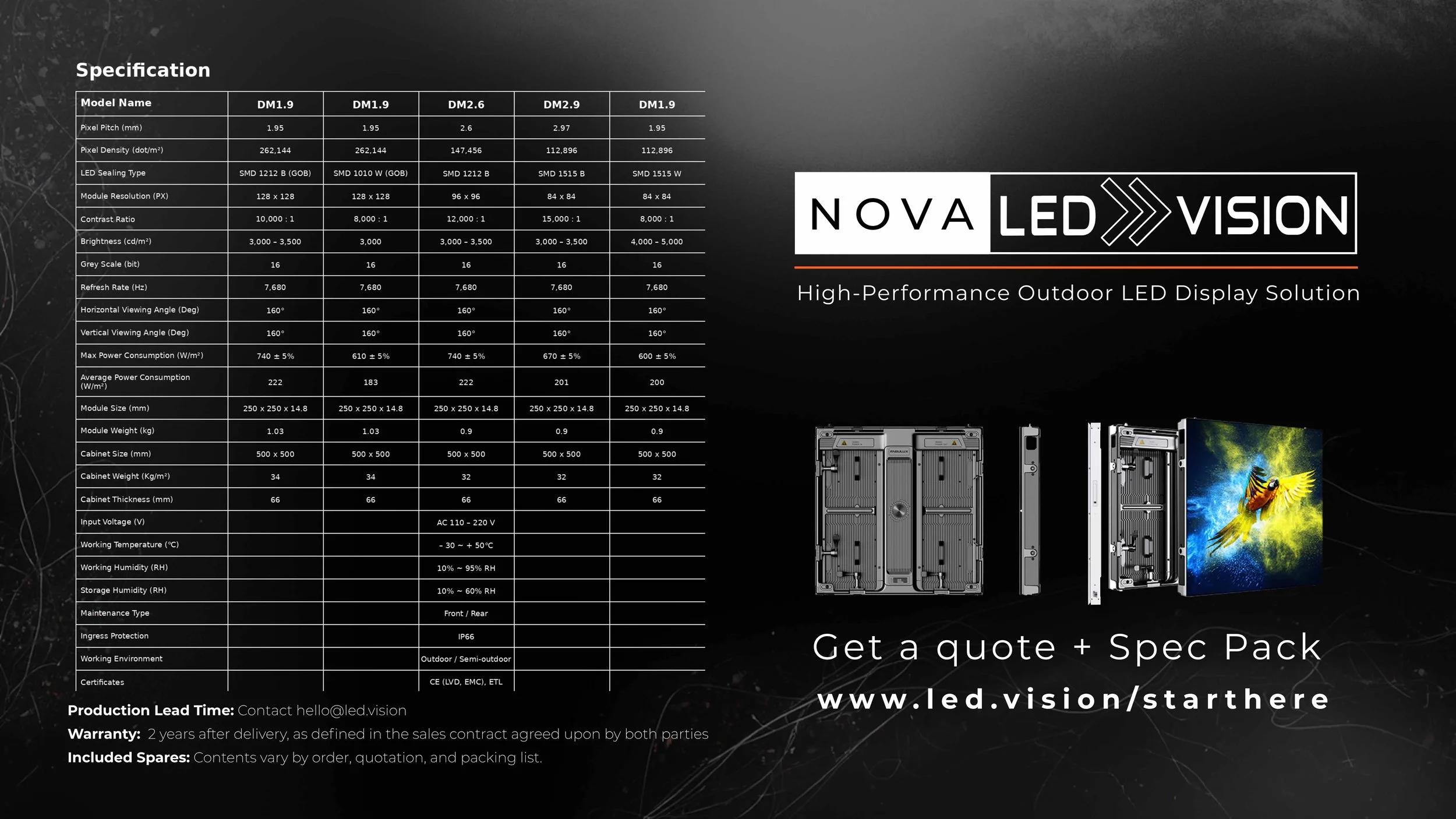

Nova Series panels are certified CE, ETL, FCC, EMC and PSE. Certificates for your specific configuration are supplied with the quoted spec pack.

Two things, running in parallel. The factory warranty is 24 months from delivery, per the sales contract agreed between both parties — that is the manufacturer cover on the hardware. Behind it sits LED Vision's three-year quality guarantee: for a further year after the factory cover ends, you can still call us and we will work through the problem with you. The third year is not factory cover and is not a parts or replacement warranty. Spares are included, with the quantity set by your order, quote and packing list. For full servicing and support terms see Service & Support.
