Indoor · Micro LED (MiP)
Indoor Micro-LED Video Walls for Seamless, Camera-Ready Installations

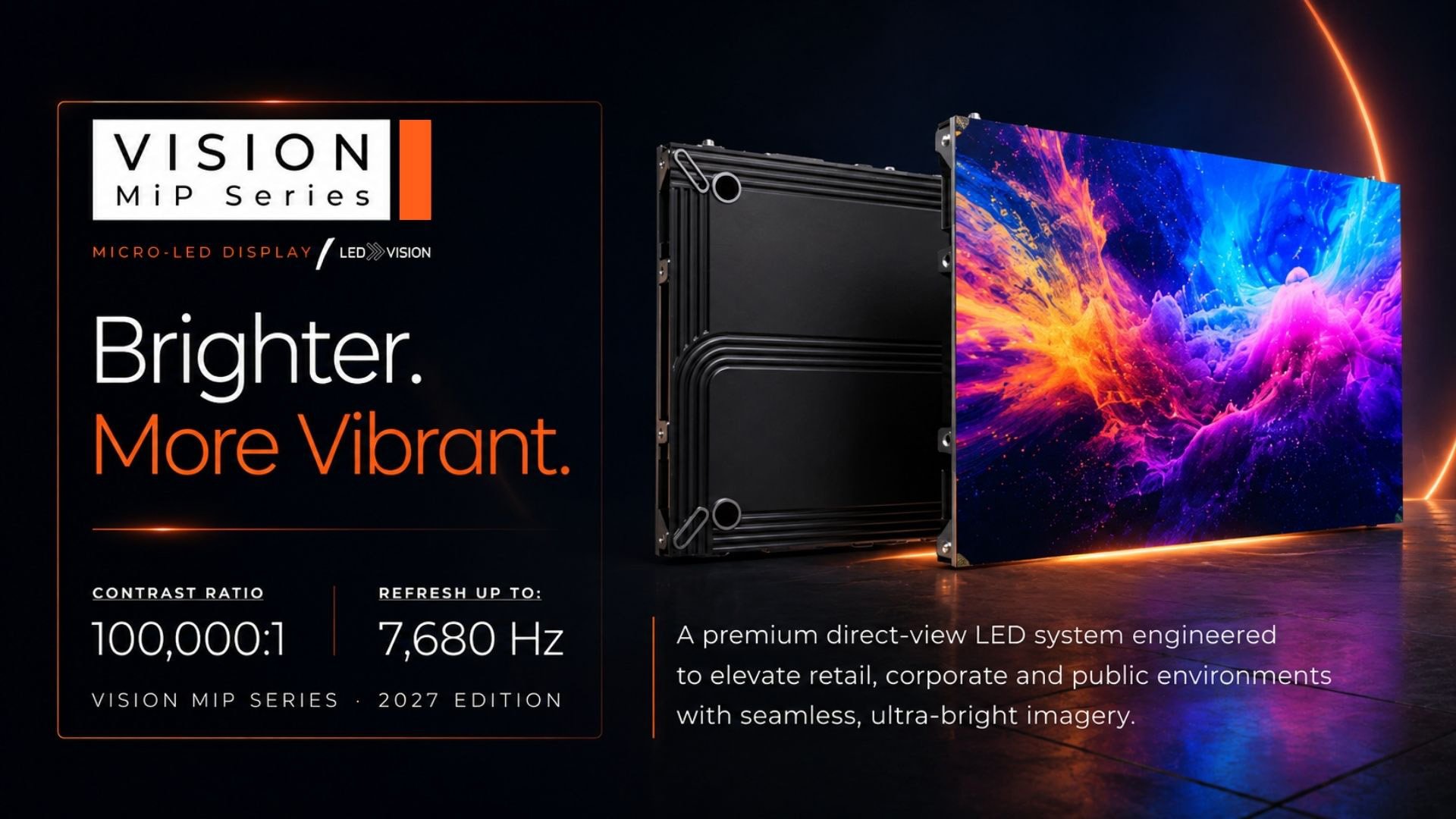

The Vision MiP Series is LED Vision's flagship indoor Micro-LED video wall, engineered for high-end fixed environments where the wall has to look flawless up close and faultless on camera. Built on a MicroLED-in-Package (MIP 0202) architecture, it delivers a true 4K canvas at intimate viewing distances, with sub-millimetre 0.78mm and 0.93mm pixel pitch, 16-bit grayscale, a wide DCI-P3 gamut, and a remarkable 100,000:1 contrast for inky blacks and pure whites. A slim 80mm profile, magnetic tool-less front service, and pre-calibrated cabinets keep installs clean and downtime low, while refresh up to 7,680Hz makes it broadcast- and camera-ready.
The technology
What is a Micro-LED video wall?
Every Vision MiP cabinet is built around a MicroLED-in-Package pixel — and around a chassis designed to vanish into the architecture.
16-bit grayscale, DCI-P3, and blacks that actually go black
A 100,000:1 contrast ratio paired with 16-bit grayscale means Vision MiP resolves the shadow detail that lesser walls crush to flat black — while a wide DCI-P3 gamut keeps skin tones, brand colours and natural light believable. Brightness of 1,000 nits keeps content legible in daylit atriums and glazed storefronts.
- 100,000:1 contrast
- 16-bit grayscale
- Wide DCI-P3
- 1,000 nits
80mm deep, mounted flush, with zero rear clearance
The chassis measures just 80mm front to back and mounts hard against the structural wall — no service corridor, no plant space, no compromise on floor plan. Pre-calibrated 600 × 337.5mm cabinets are built to a native 16:9 ratio, so canvases scale in whole displays rather than awkward remainders, and a 175° viewing angle holds colour from every seat in the room.
- 80mm chassis depth
- 600 × 337.5mm, 16:9
- 175° H / 175° V
- Zero-clearance mount
100% front access. No tools, no ladder behind the wall.
Modules and power supplies are held magnetically and lift out from the face of the wall, so a swap takes minutes and never requires rear access. Every panel ships factory pixel-calibrated and supports software-driven field recalibration, which keeps a large canvas uniform and colour-matched years into its life rather than months.
- Tool-less magnetic modules
- Front-serviceable PSUs
- Factory pixel calibration
- IP63 front / IP20 rear
A die-cast aluminium chassis rated for the real world
Each cabinet is machined from precision die-cast aluminium — rigid enough to hold flatness across a large canvas, and light enough to handle on site. The operating envelope runs from -20°C to 55°C at 10–95% relative humidity, so the wall stays within spec in glazed atriums, unconditioned back-of-house corridors and rooms that swing hard between seasons.
- Precision die-cast aluminium
- -20°C to 55°C operating
- 10–95% RH non-condensing
- 0.78 / 0.93mm pitch
Why Vision MiP
Why choose Micro-LED over LCD and standard SMD LED
Brighter, more vibrant visuals
16-bit grayscale, a wide DCI-P3 gamut and 100,000:1 contrast render inky blacks, pristine whites and richly saturated mid-tones. Brightness of 1,000 nits keeps content punchy and daylight-readable in bright atriums and storefronts.
Engineered to captivate
Cinema-grade contrast, broadcast-grade refresh and a tool-less modular build come together in one continuous canvas. A 3,840–7,680Hz refresh delivers flicker-free, camera-ready motion for broadcast, virtual production and live event capture.
Seamless, edge-to-edge surfaces
Pre-calibrated 600 × 337.5mm cabinets, built to a native 16:9 golden ratio, align without visible seams across any wall length. Support for clean 90° corners and curved layouts wraps columns and walls as one uninterrupted surface.
The Micro-LED difference
A chip-level MicroLED-in-Package architecture (MIP 0202) outperforms LCD and standard SMD LED on clarity, color depth, contrast and longevity — pixel-perfect detail at close range that holds up in person and through a lens.

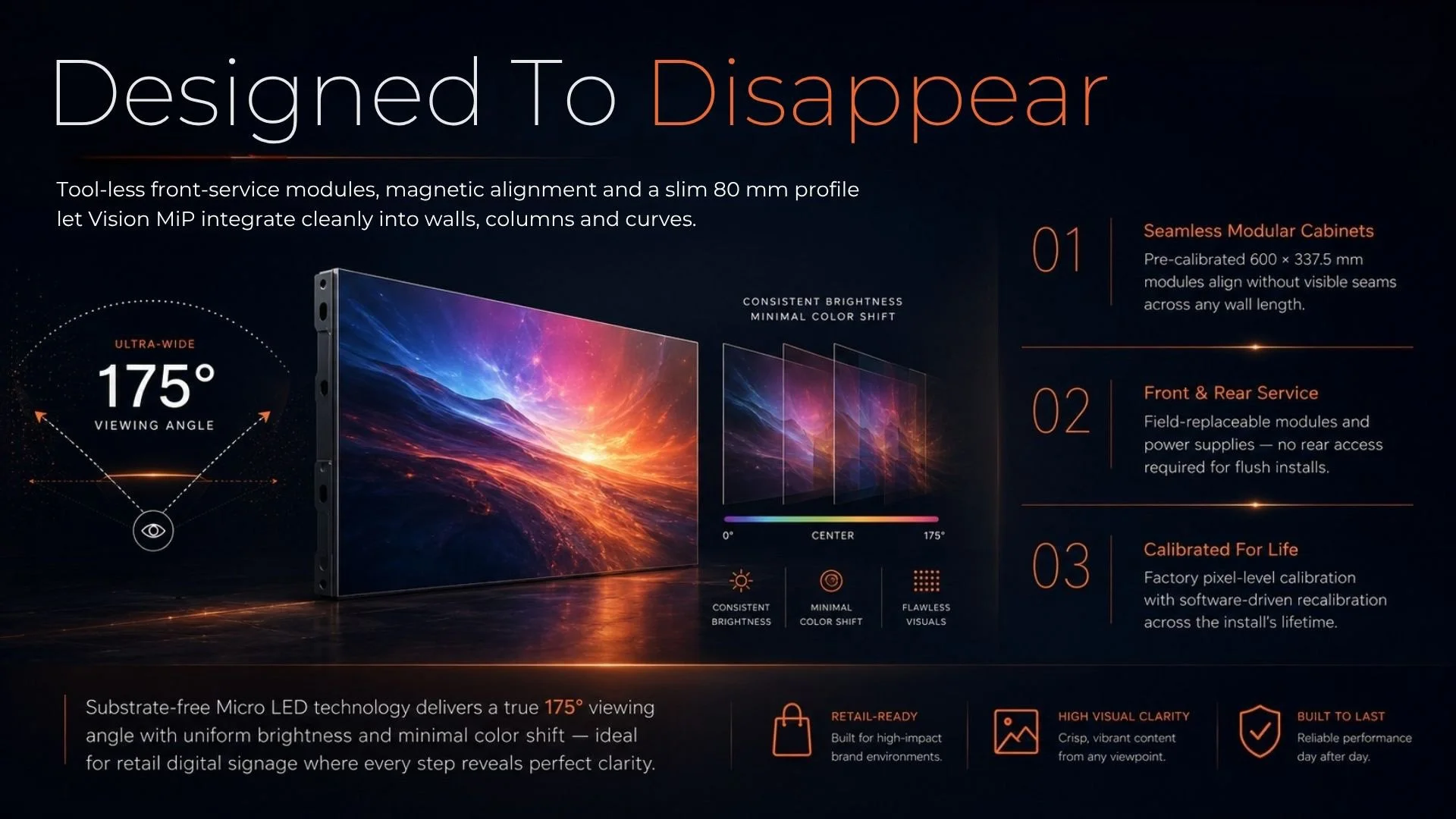

Designed to disappear
A slim 80mm chassis, magnetic alignment and tool-less front-service modules let Vision MiP fit flush into walls, columns and curves with zero-clearance mounting — no rear access needed. A 175° viewing angle keeps brightness and color uniform from every seat.
Built to stay calibrated
Every panel ships with rigorous factory-level pixel calibration, backed by software-driven field recalibration — so even across expansive canvases the image stays uniform, color-balanced and high-end for years to come.
A continuous indoor canvas — pre-calibrated cabinets align edge to edge, so a wall of any length reads as a single surface.
Where it goes

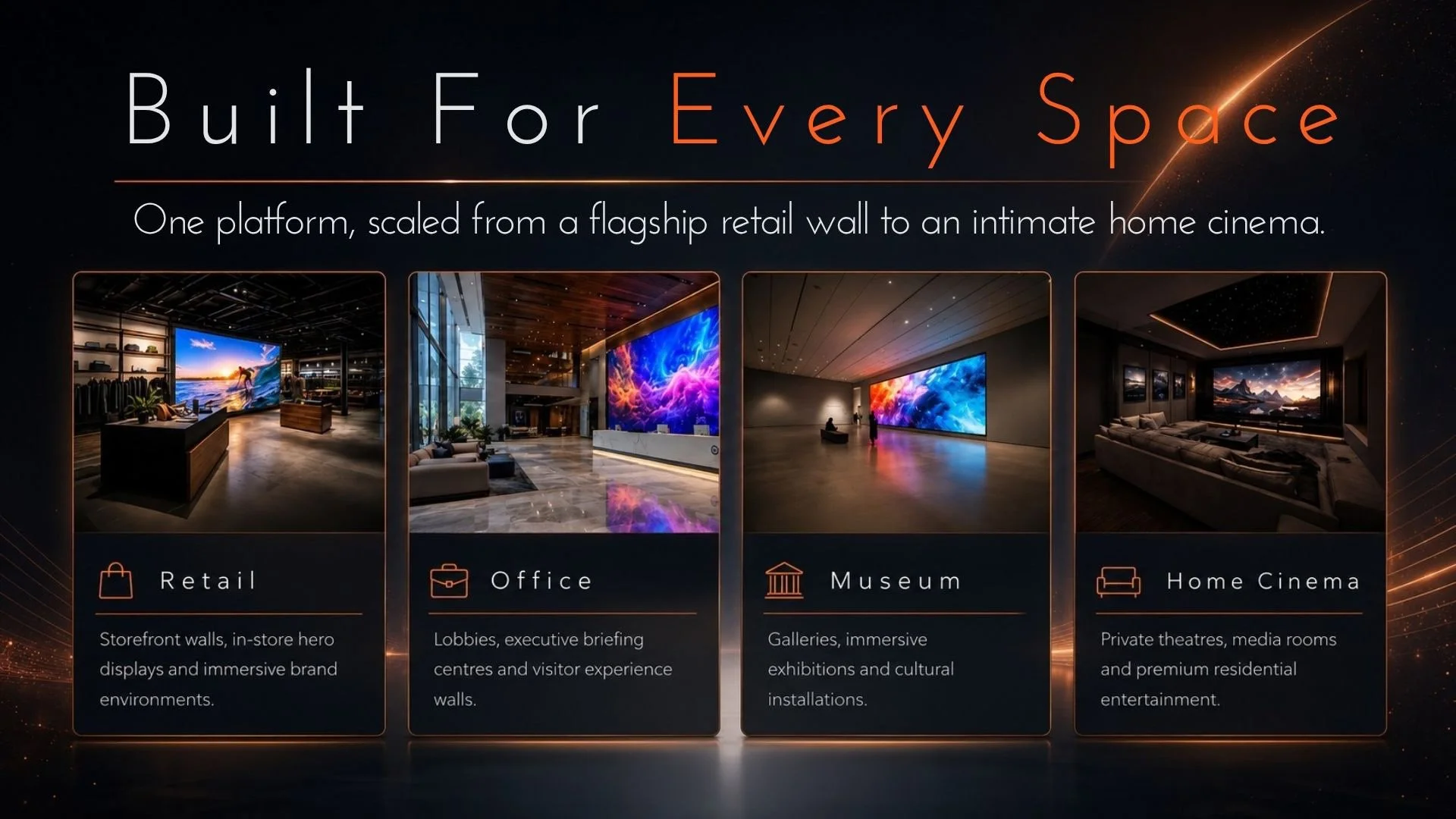

Where indoor Micro-LED video walls are used
Vision MiP is specified for fixed indoor installations where the display is part of the architecture — not a screen bolted to it.
Bring campaigns, products and brand storytelling to life with a high-resolution indoor Micro-LED video wall built for flagship stores, storefront hero walls and immersive brand activations.

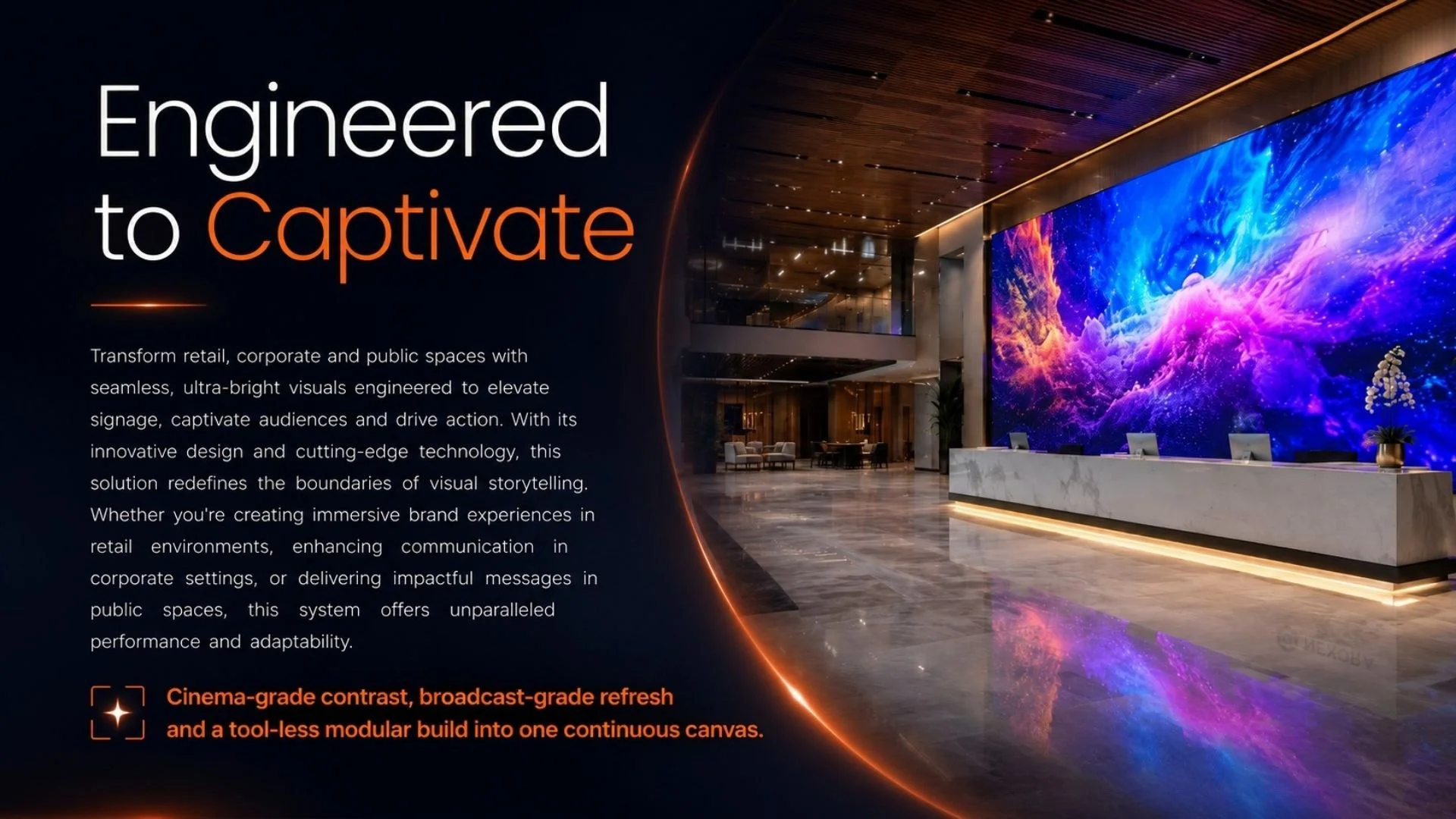

Make a premium first impression with a seamless indoor Micro-LED wall for flagship lobbies, executive reception areas and visitor-experience spaces.
Power galleries, immersive exhibitions and cultural installations with deep blacks, wide viewing angles and true-to-life colour that holds from every vantage point.
Replace the projector with a self-emissive Micro-LED canvas for private theatres, media rooms and premium residential entertainment.
With 3,840–7,680Hz refresh, deep blacks and consistent flatness, Vision MiP is camera-ready for corporate studios, presentation stages, virtual production and live event capture.
Design immersive indoor environments with creative layouts, including clean corner builds using 90° splicing — for architectural displays and branded environments.
Specifications

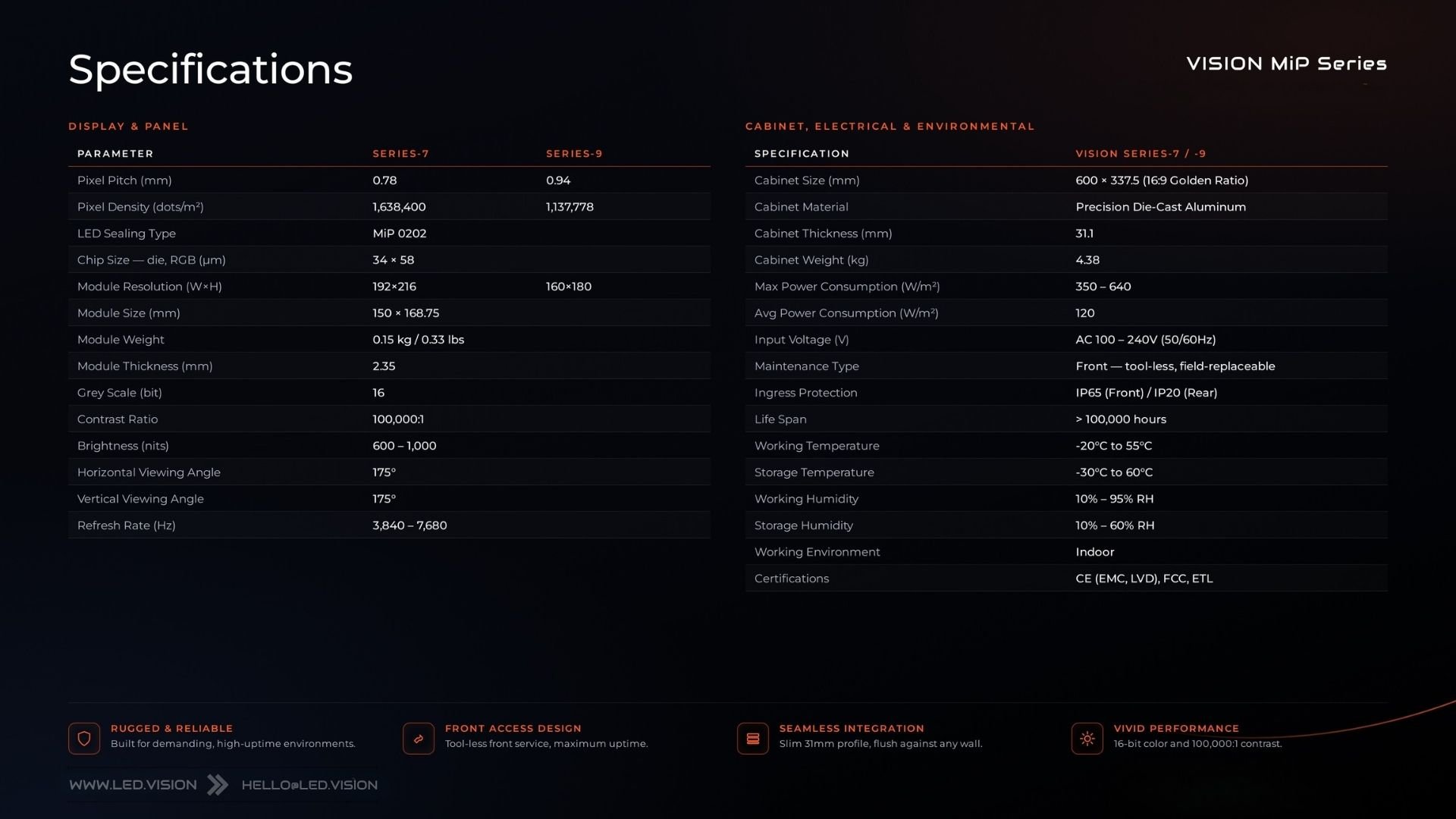

Indoor Micro-LED video wall specifications
| Spec | Value |
|---|---|
| Pixel pitch | 0.78mm / 0.93mm |
| Brightness | 1,000 nits |
| Contrast ratio | 100,000:1 |
| LED chip size | 34 × 58 × 7.5µm, substrate-free MicroLED-in-Package |
| Blackness area ratio | 99.03%, via black underfill and nano-coating |
| Energy efficiency | 40% saving versus standard displays |
| Grayscale | 16-bit |
| Color gamut | Wide DCI-P3 |
| Refresh rate | 3,840–7,680Hz |
| Viewing angle | 175° horizontal / 175° vertical |
| Cabinet size | 600 × 337.5mm (16:9) |
| Chassis depth | 80mm |
| IP rating | IP63 front / IP20 rear |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -30°C to 60°C |
| Humidity | 10%–95% RH, non-condensing |
| Serviceability | 100% front access, tool-less magnetic modules |
| Quality guarantee | 36 months |
View Vision MiP Full Technical Specifications
Download the Vision MiP Brochure
Pixel pitch options
Vision MiP ships in two sub-millimetre pixel pitches:
Choose P0.78 for the closest viewing distances and the sharpest possible image; P0.93 for slightly larger canvases at a lower cost while remaining sharp at arm's length.
Full feature breakdown
- 1,000 nits brightness
- 100,000:1 contrast with 16-bit grayscale and wide DCI-P3 color
- Deep blacks, pure whites, saturated mid-tones
- Smooth, flicker-free motion at up to 7,680Hz — camera- and broadcast-ready
- MicroLED-in-Package (MIP 0202) chip-level pixel architecture
- True 4K canvas at intimate viewing distances
- 175° horizontal / 175° vertical viewing angle for consistent off-axis color
- Premium indoor build with precision die-cast aluminum cabinets
- Factory pixel-level calibration with ongoing software recalibration
- Operating range -20°C to 55°C (storage -30°C to 60°C), 10%–95% RH
- IP63 front (dust/moisture resilient) / IP20 rear
- 100% front access — magnetic, tool-less field-replaceable modules and power supplies
- Zero-clearance flush mounting; no rear access required
- Pre-calibrated cabinets for fast, seamless alignment
- Seamless 90° corners and curved configurations; custom sizes and aspect ratios
Questions
Indoor Micro-LED video wall FAQ
What pixel pitch do I need for an indoor Micro-LED wall?
Vision MiP is available in two sub-millimetre pixel pitches: P0.78 and P0.93. Choose P0.78 for the closest viewing distances and the sharpest possible image, and P0.93 for slightly larger canvases at a lower cost while remaining sharp at arm's length.
What is MicroLED-in-Package (MIP 0202)?
MicroLED-in-Package is a chip-level pixel architecture in which each Micro-LED die is packaged before it is mounted to the panel. In Vision MiP, this MIP 0202 architecture supports 16-bit grayscale, a wide DCI-P3 gamut and 100,000:1 contrast at sub-millimetre pixel pitch.
Is a Micro-LED wall suitable for broadcast and virtual production?
Yes. Vision MiP refreshes at 3,840–7,680Hz, which delivers flicker-free, camera-ready motion for corporate studios, presentation stages, virtual production and live event capture. Deep blacks and consistent panel flatness support in-camera work.
How is an indoor Micro-LED video wall serviced?
Vision MiP offers 100% front access. Modules and power supplies are magnetic and tool-less, so they can be replaced from the front of the wall with no rear access required — which is what allows zero-clearance flush mounting against a structural wall.
Can a Micro-LED video wall be built into curves and corners?
Yes. Vision MiP supports seamless 90° corners and curved configurations, along with custom sizes and aspect ratios, so the wall can wrap columns and architectural features as one continuous surface. Send us your layout and we'll confirm the build.
What warranty comes with an indoor Micro-LED video wall?
Vision MiP is supplied with a 36-month quality guarantee. For servicing and support terms, see Service & Support.
Ready to spec Vision MiP?
Tell us your canvas size, viewing distance and install timeline. We'll confirm pitch, cabinet count and a real number.
